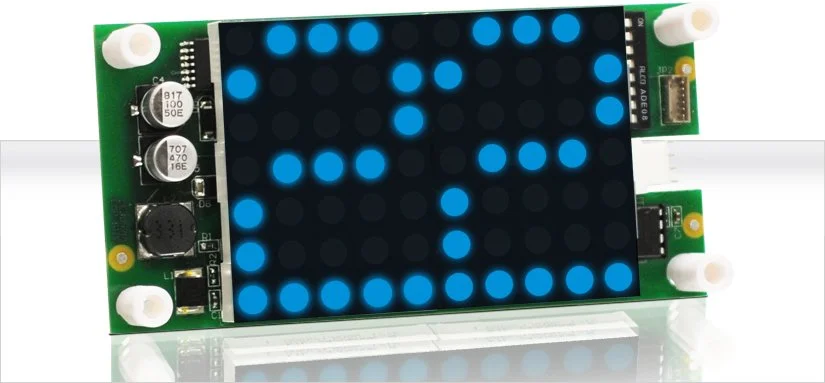

2 Character 50mm Dot Matrix
Dot Matrix LED digital indicator for floor position display, as well as car direction, if desired. Any aphanumeric or custom character can be displayed in either single digit with arrow or double digit floor designations.
VIEW: DATASHEET
WIRING DIAGRAM: MICRO COMM INPUT
Features:
Low-cost design
Self-contained unit
Latched input
Scrolling & rollover
Hall lantern option
Passing chime output
Self-testing
Message inputs
Error detection and correction feature
Typical Applications:
Car-OP Panel
Transom-car or Hall
