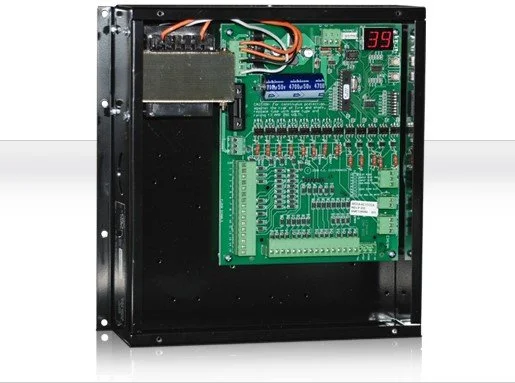

MCCA-XXXXXXX

CENTRAL CONTROL UNIT (“CCU”) | UL listed controller

Drives any remote display indicator (RDI’s, Voice, Lanterns) on the C.E. MICRO COMM 3-wire display network. The “MCCA” accepts the floor select signals in a choice of formats and voltages, does a redundancy check to verify correct inputs, then sends out all necessary signals for digital floor position, car direction, and passing chime to all RDI’s via 3-wires.

VIEW: DATASHEET

WIRING DIAGRAM: MICRO COMM INPUT

DOWNLOAD: E-FLYER

Features:

  • UL listed

  • Arrival arrows

  • Strobe

  • Fast, 3-wire hookup

  • Latched inputs

  • Cross Wire Protected

  • Self-testing

  • With an alternate message module capable of 8 prioritized messages

  • Drives multiple RDI’s directly

  • Passing chime output

  • Error detection and correction feature
