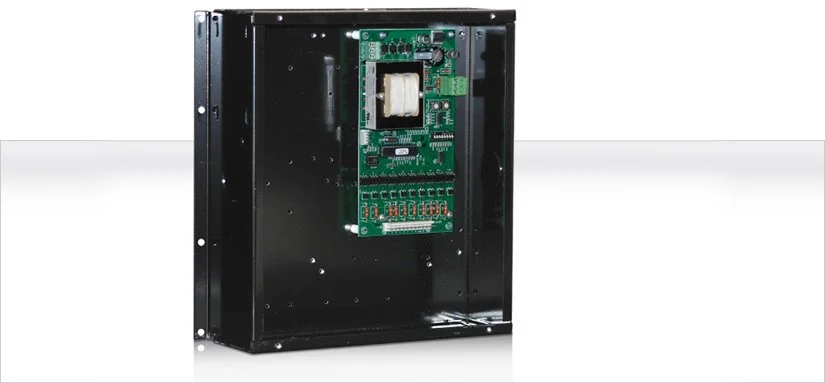

SMCDU-XX
This unit was designed to be a compact display driver board. The board is capable of driving 4 displays remote from itself. Any MICRO COMM series display can be utilized with this unit.
VIEW: DATASHEET
WIRING DIAGRAM: MICRO COMM INPUT
Features:
Latched inputs
Cross wire protected
Self testing
Alternate message
Passing chime output
Remote display
Self-contained
Error detection and correction feature
UL listed
Fullwave Bridge AC/DC inputs
8 Inputs & Up/Down
