OCDL-XX
Our OCDL-XX provides a direct interface between compatible Otis 411-style lift controllers and the C.E. Electronics MICRO COMM network. It allows MICRO COMM position indicators, voice modules and scrolling message displays to operate directly from the existing Otis car data link.
Designed as a compact solid-state interface, the OCDL-XX connects to the car data link in a similar manner to an Otis RS5 card and includes an integrated gong output. This provides a straightforward way to integrate C.E. Electronics passenger information products with compatible Otis installations.
The signal bridge for modernisation.
A solid-state card that converts what the existing controller already speaks onto the MICRO COMM network, so you upgrade the display without replacing the controller.
Technical specification
Wire it between controller and display.

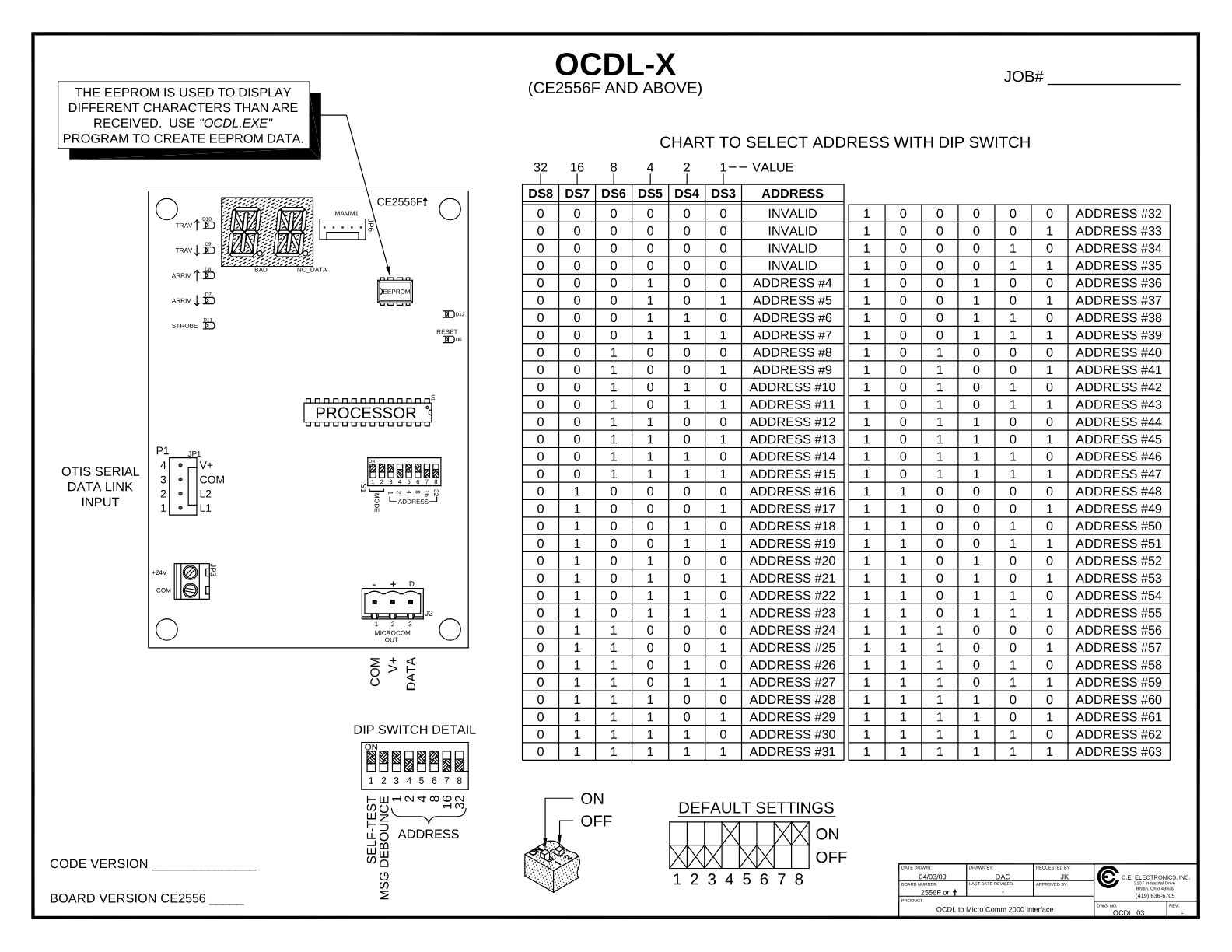

The wiring diagram details the connection from the controller to the MICRO COMM input; mounting dimensions are given in the datasheet.
Stuck on a connection or signal type? Talk to technical support.
