Otis 15" Elite PI
Our 15" Otis Luxury PI provides a large, highly configurable display for lift position, direction, passenger information and messaging. Screen layouts can be customised with backgrounds, textures, fonts, arrow styles and individually positioned display elements, allowing the finished design to complement the building or installation.
Designed specifically for Otis installations, the OX150-CL2 connects directly to the Otis RSL serial link and supports floor, priority and time-based messaging. Optional live video, passing chime output and self-testing provide additional functionality for car operating panel, car transom and lobby applications.
Engineered to suit Otis equipment.
Direct-fit indicators and interface cards built for Otis controllers and fixtures, driven over MICRO COMM for a clean modernisation.
Technical specification
Connect it to your Otis controller.

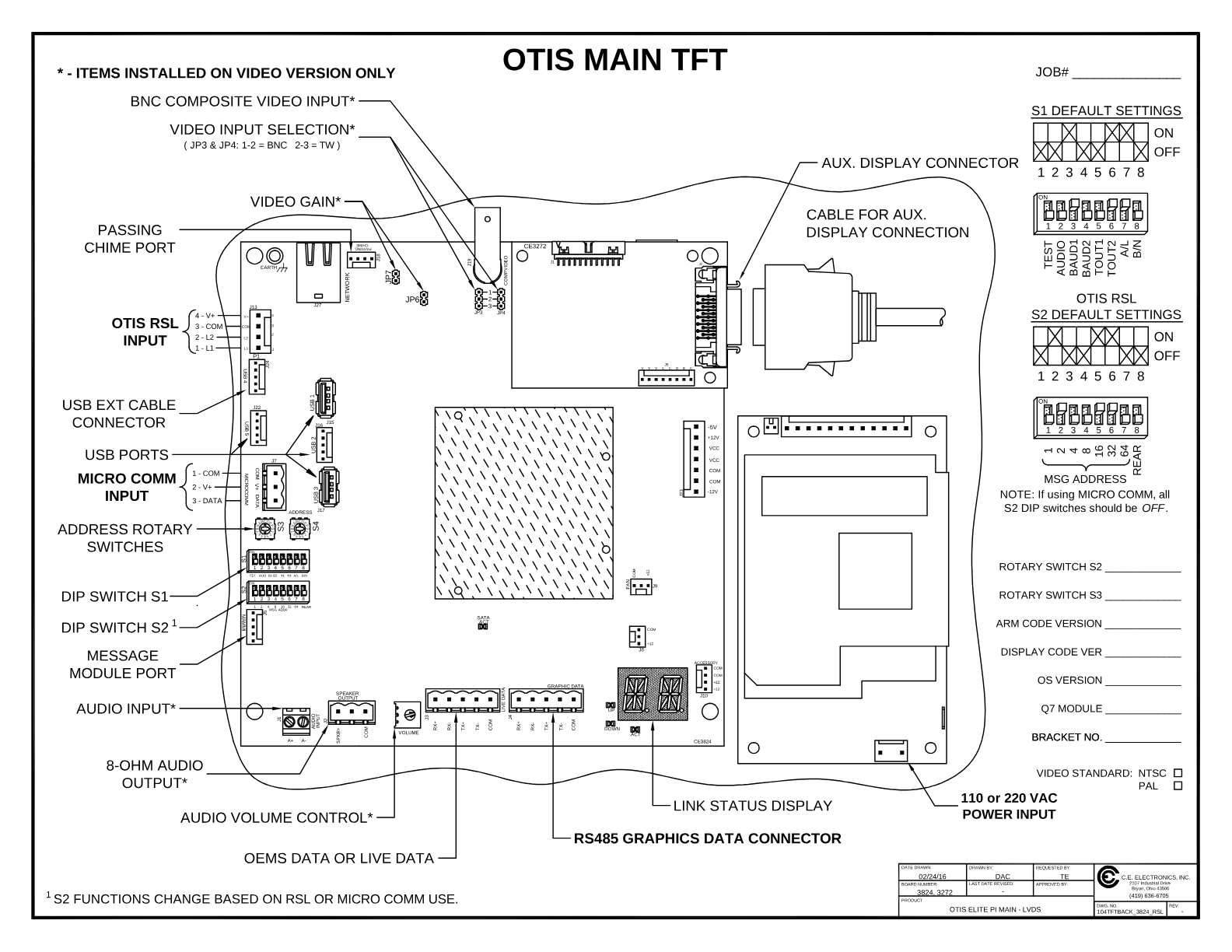

The wiring diagram details the connection to the Otis controller over MICRO COMM; mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
