Single Landing System
Our SEC01-XXXX is a compact single-relay access control unit designed to secure one landing or controlled circuit. It can be used with a keypad or card reader and supports six-digit access codes for up to 600 users, providing a straightforward solution for applications such as restricted landings, hall call buttons, stairwells and garage access.
The SEC01-XXXX can operate as a standalone unit or form part of a larger security system. Its RS485 interface allows up to 16 units to be daisy chained together and centrally powered and programmed using the optional SECPS remote programming station.
Control which floors a car serves.
Keypad and card-reader access systems that secure individual landings through relay-isolated outputs, set up from a single handheld programmer.
Technical specification
Wire it into the landing circuits.

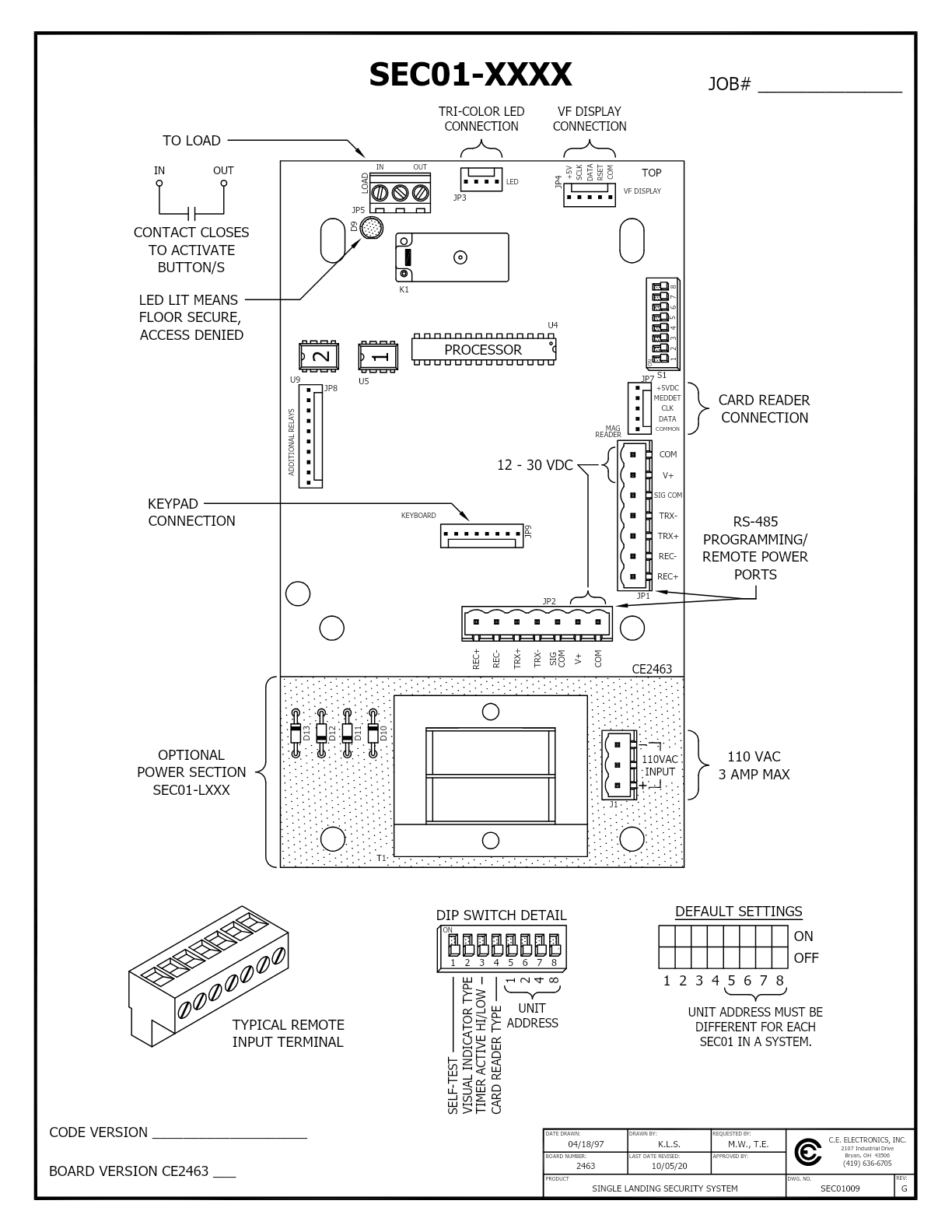

The wiring diagram shows how the system isolates each secured landing through its relay outputs; mounting dimensions are given in the datasheet.
Stuck on a connection or signal type? Talk to technical support.
