8 Landing System
Our SEC08-XXXX provides programmable access control for up to eight lift landings. When security is active, the system prevents access to the protected floors until an authorised code or credential is entered, temporarily enabling the appropriate relay outputs so that the user can make their permitted floor selection.
Built on the same architecture as the rest of our multi-relay security range, the SEC08-XXXX supports up to 600 users, field programming, an external override input and optional programmable timed operation.
Control which floors a car serves.
Keypad and card-reader access systems that secure individual landings through relay-isolated outputs, set up from a single handheld programmer.
Technical specification
Wire it into the landing circuits.

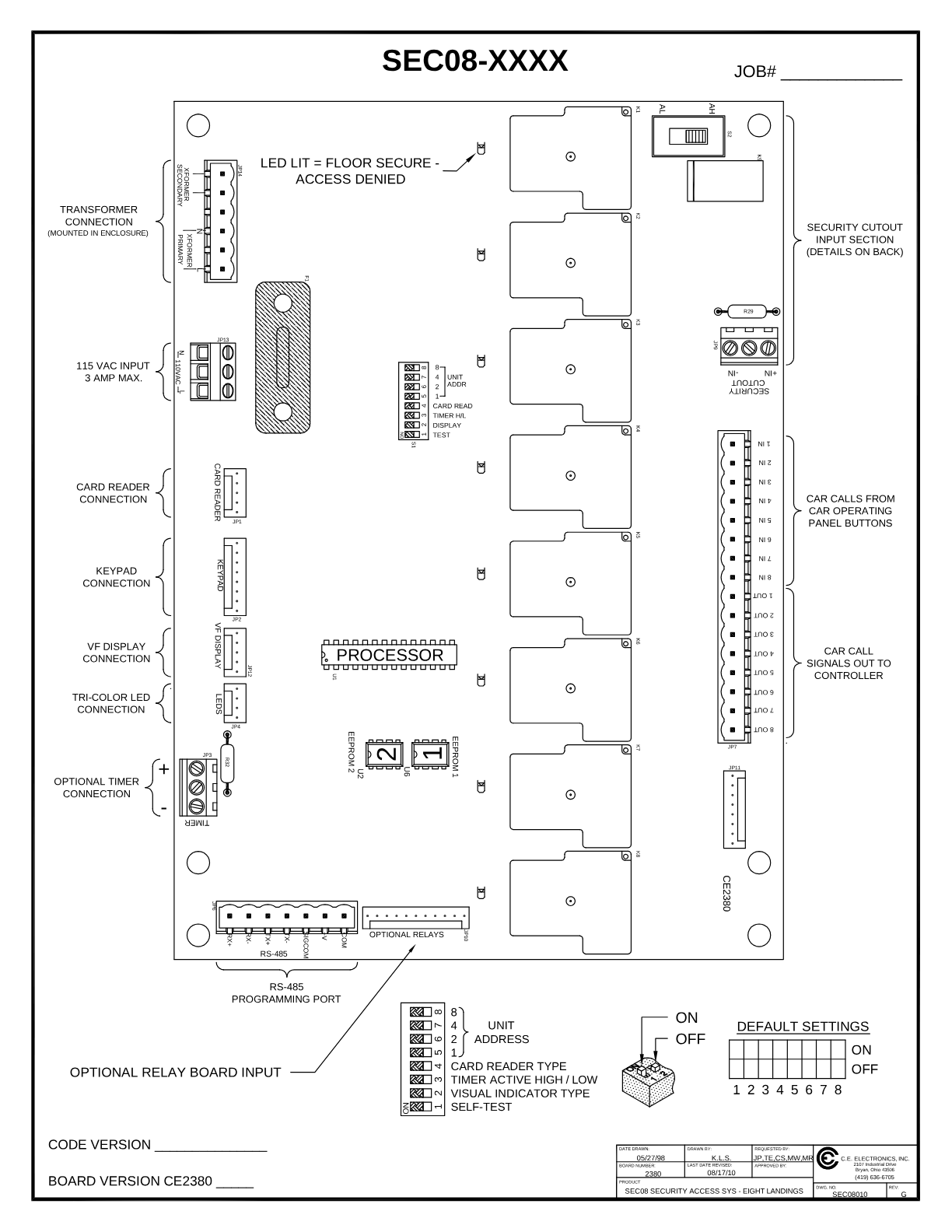

The wiring diagram shows how the system isolates each secured landing through its relay outputs; mounting dimensions are given in the datasheet.
Stuck on a connection or signal type? Talk to technical support.
