SHAIO-XXXXXXX
Our SHAIO-XXXXXXX provides a complete control interface for MICRO COMM remote displays, voice units and lanterns. It accepts lift controller floor signals in a range of formats and voltages, verifies the incoming information and distributes floor position, direction and passing chime data across the MICRO COMM 3-wire network.
The board includes eight floor inputs together with arrival and travelling arrow control, voice strobe output, latched inputs, self-testing and cross-wire protection. An integrated alternate message module supports up to seven prioritised messages, providing additional passenger information functionality without requiring a separate messaging module.
Additional input or decoder boards can be used where required for larger or different controller interfaces.
The signal bridge for modernisation.
A solid-state card that converts what the existing controller already speaks onto the MICRO COMM network, so you upgrade the display without replacing the controller.
Technical specification
Wire it between controller and display.

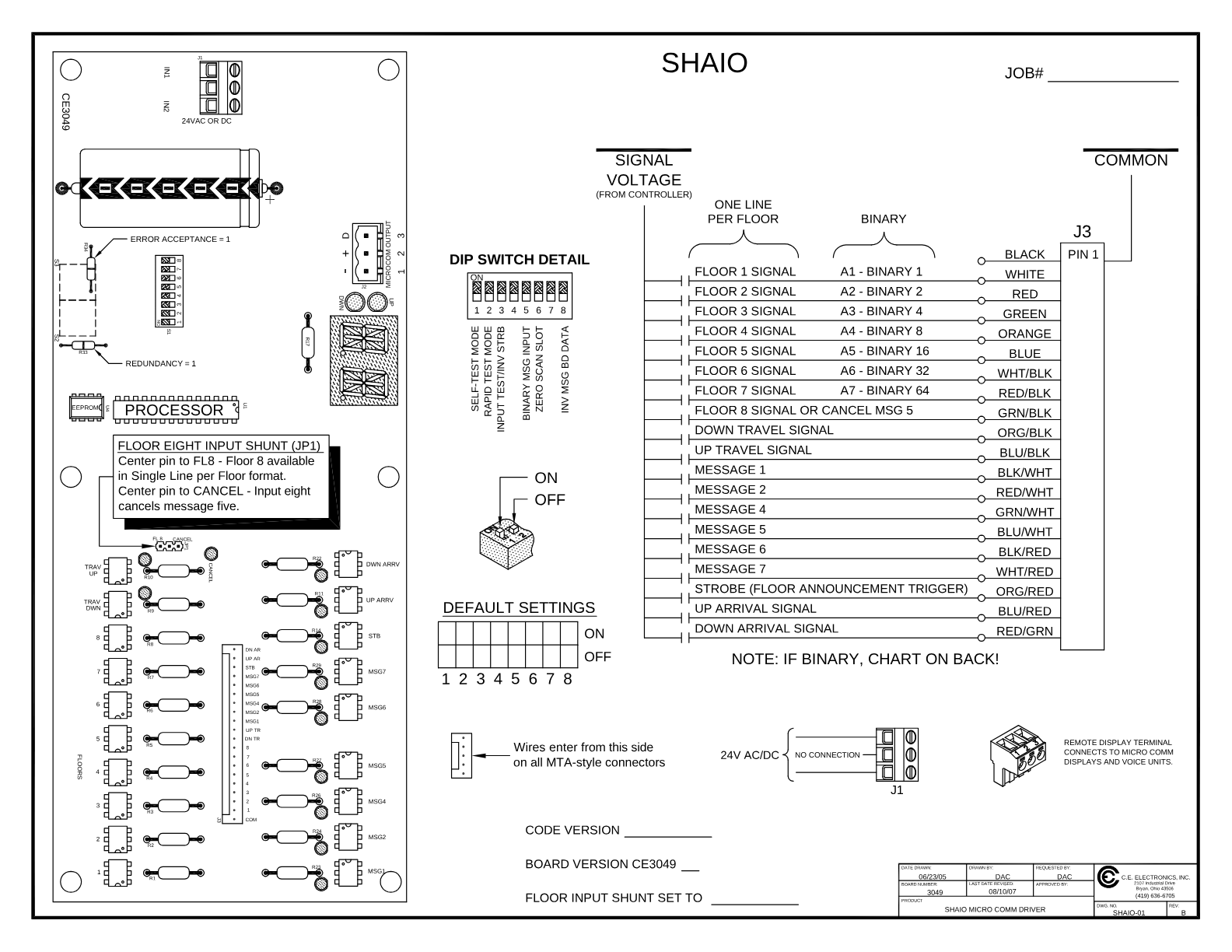

The wiring diagram details the connection from the controller to the MICRO COMM input; mounting dimensions are given in the datasheet.
Stuck on a connection or signal type? Talk to technical support.
