SHCDUE-XXX
Our SHCDUE-XXX is a compact, self-contained control driver designed for larger MICRO COMM display installations. It can support up to 30 remote displays, subject to the available power supply capacity, and is compatible with any MICRO COMM series display.
The board provides eight floor inputs plus up and down direction inputs, together with latched input operation, self-testing, alternate messaging and passing chime output. Built-in cross-wire protection and error detection and correction provide additional resilience for reliable operation across the MICRO COMM network.
The signal bridge for modernisation.
A solid-state card that converts what the existing controller already speaks onto the MICRO COMM network, so you upgrade the display without replacing the controller.
Technical specification
Wire it between controller and display.

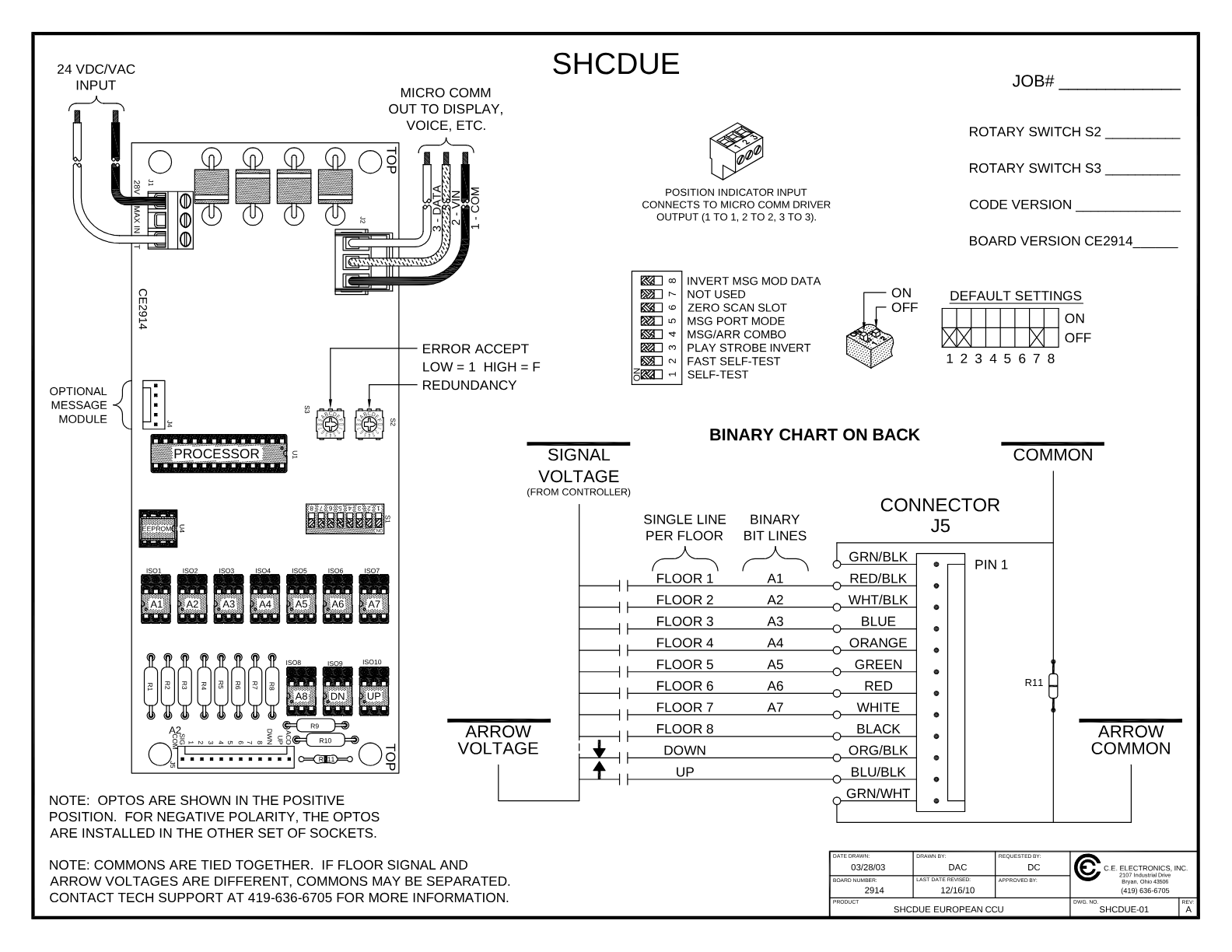

The wiring diagram details the connection from the controller to the MICRO COMM input; mounting dimensions are given in the datasheet.
Stuck on a connection or signal type? Talk to technical support.
