2 Character 25mm Dot Matrix
Our DM210-XX is a compact LED dot matrix position indicator designed for applications where available panel space is limited. Its 25 mm characters can display alphanumeric or custom floor designations, with the display configured for either a single floor character with direction arrow or a two-character floor designation.
With an overall footprint of just 115 mm × 56 mm and a depth of 17.5 mm, the DM210-XX provides a particularly compact option for integrating clear passenger information into car operating panels, transoms and other restricted spaces.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

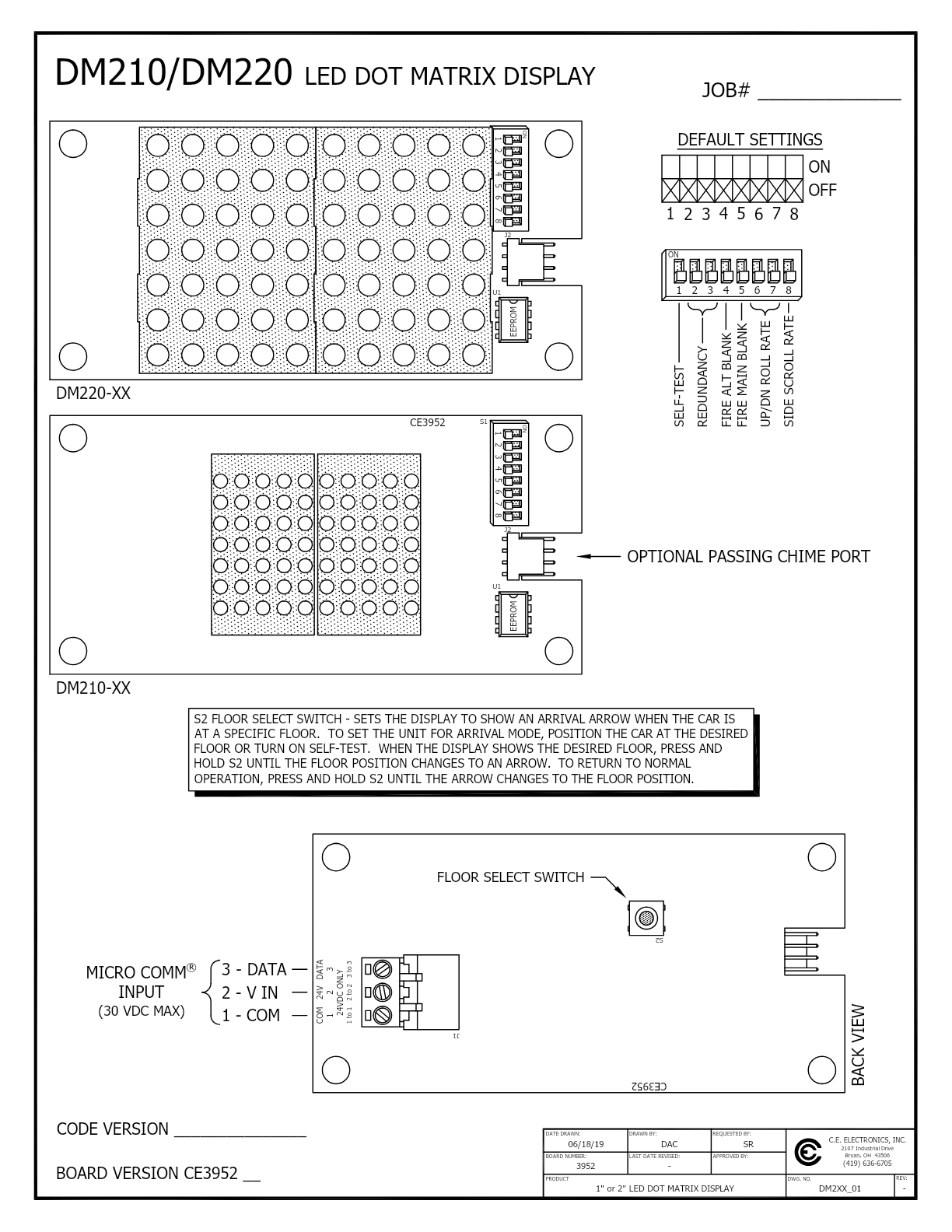

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
