1 Character 45mm Dot Matrix
Our EH115-XXXXX provides clear single-character floor indication using a 45 mm LED dot matrix display. Alphanumeric and custom characters can be displayed, providing flexibility for installations using standard floor numbers, letters or project-specific floor designations.
Designed for car operating panels and car or hall transoms, the EH115-XXXXX combines a compact horizontal footprint with features including scrolling and rollover, message inputs, passing chime output and self-testing.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

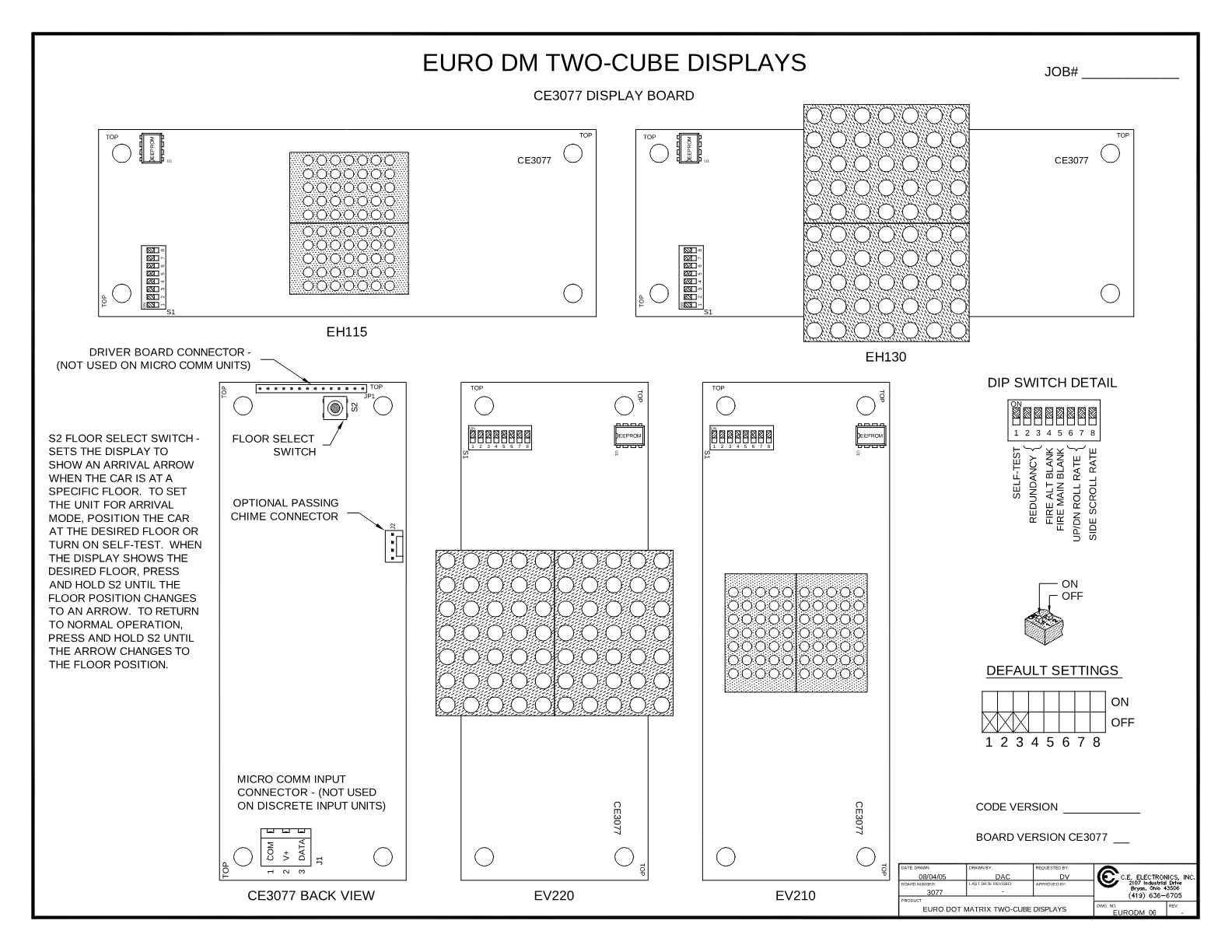

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
