1 Character 25mm Dot Matrix
Our EH110-XXXXX is a horizontal LED dot matrix position indicator designed for clear, straightforward single-character floor indication. Its 30 mm display can show alphanumeric or custom characters, allowing the floor designation to be configured to suit the requirements of the installation.
Its low-profile 160 mm × 60 mm format makes it well suited to car operating panels and car or hall transoms where a simple, compact position indicator is required.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

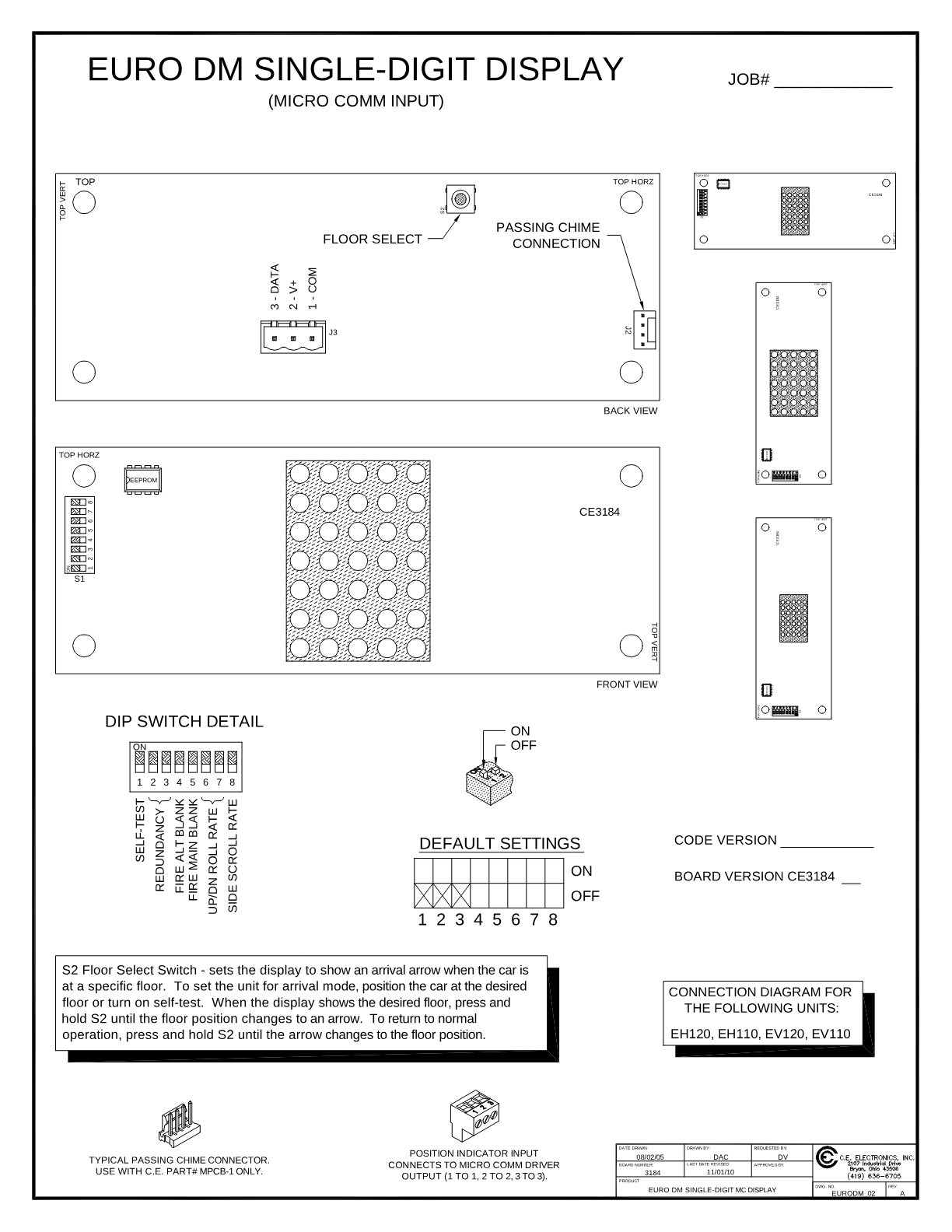

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
