1 Character 75mm Dot Matrix
Our EH130-XXXXX is designed for installations where passenger visibility is the priority, using a large 75 mm LED dot matrix character for clear floor position indication. Alphanumeric and custom characters can be displayed to accommodate different floor naming requirements.
The larger character format makes the EH130-XXXXX particularly suitable where the position indicator needs to be easily read from further away whilst retaining the straightforward functionality of the European Series.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

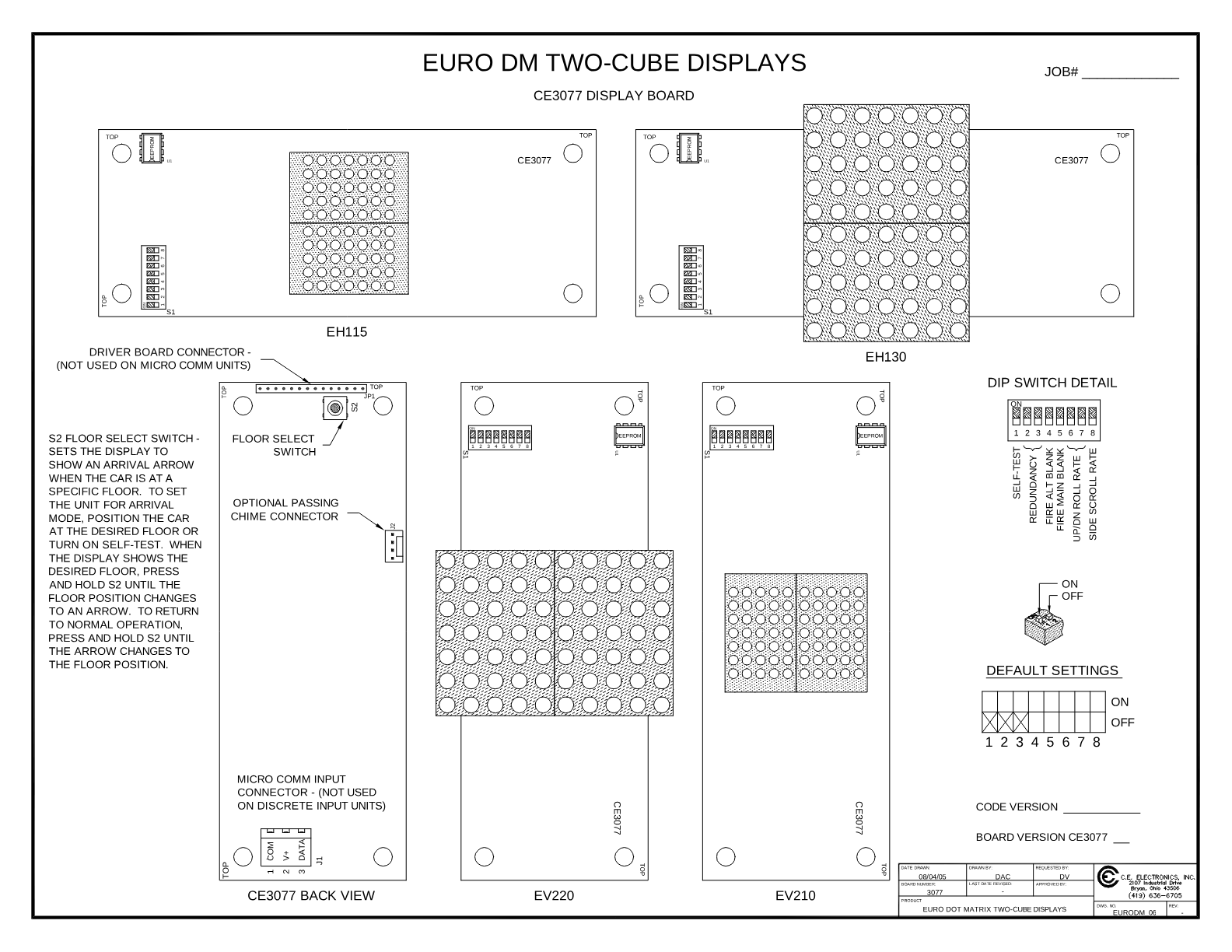

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
