2 Character 30mm Dot Matrix
Our EH210-XXXXX provides floor position and optional direction information using 30 mm LED dot matrix characters. The two-position format can display a single alphanumeric or custom floor character alongside a direction arrow, or provide a two-character floor designation where required.
Its compact 160 mm × 60 mm horizontal footprint provides a flexible solution for car operating panels and transom applications where more information is required than a single-character indicator can provide.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

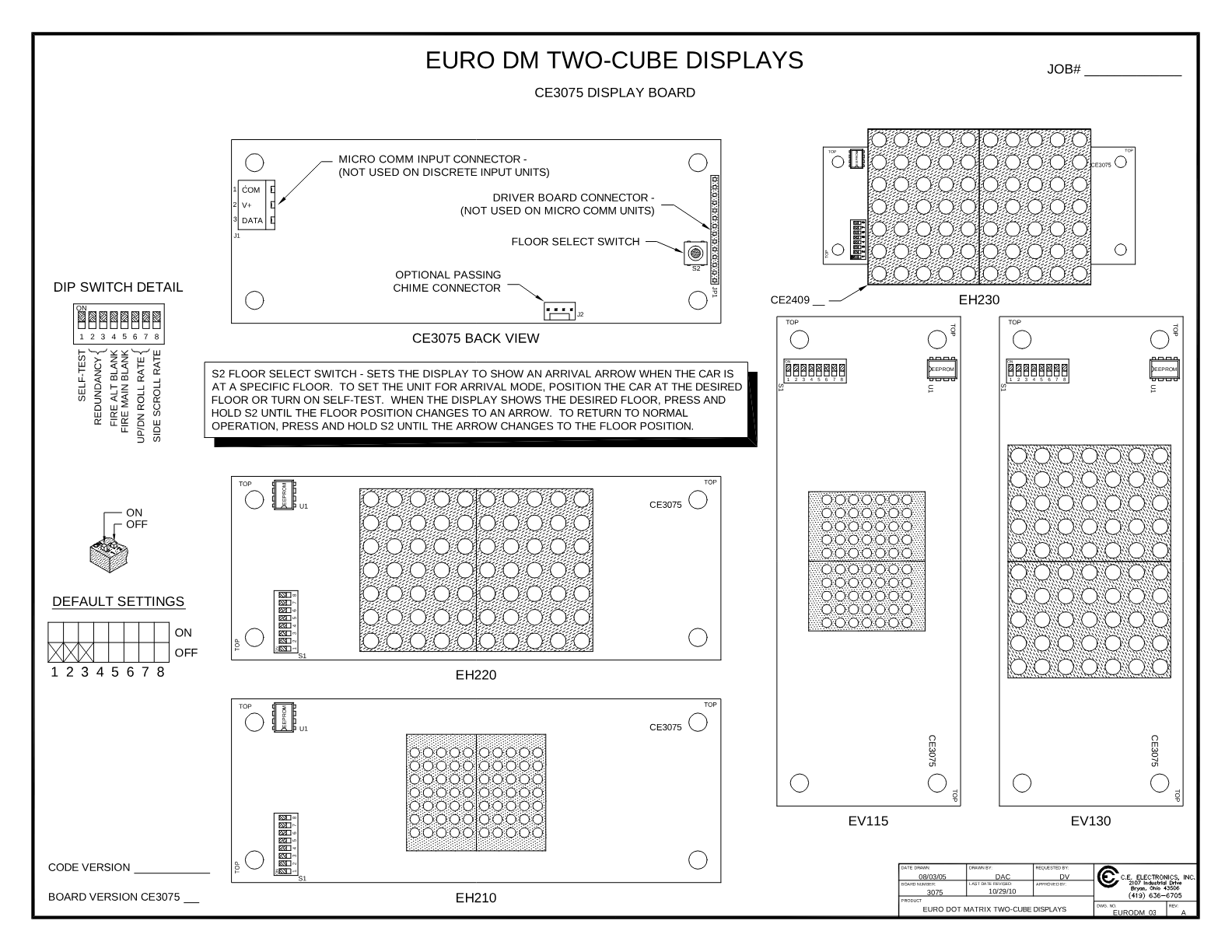

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
