3 Character 30mm Dot Matrix
Our EH310-XXXXX provides clear LED floor position and direction information using compact 30 mm dot matrix characters. Its expanded display arrangement allows a floor character to be presented alongside separate UP and DOWN direction arrows, giving passengers clear position and travel information within a single horizontal indicator.
The 160 mm × 60 mm footprint makes the EH310-XXXXX well suited to car operating panels and transoms where dedicated direction indication is required without moving to a significantly larger display assembly.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

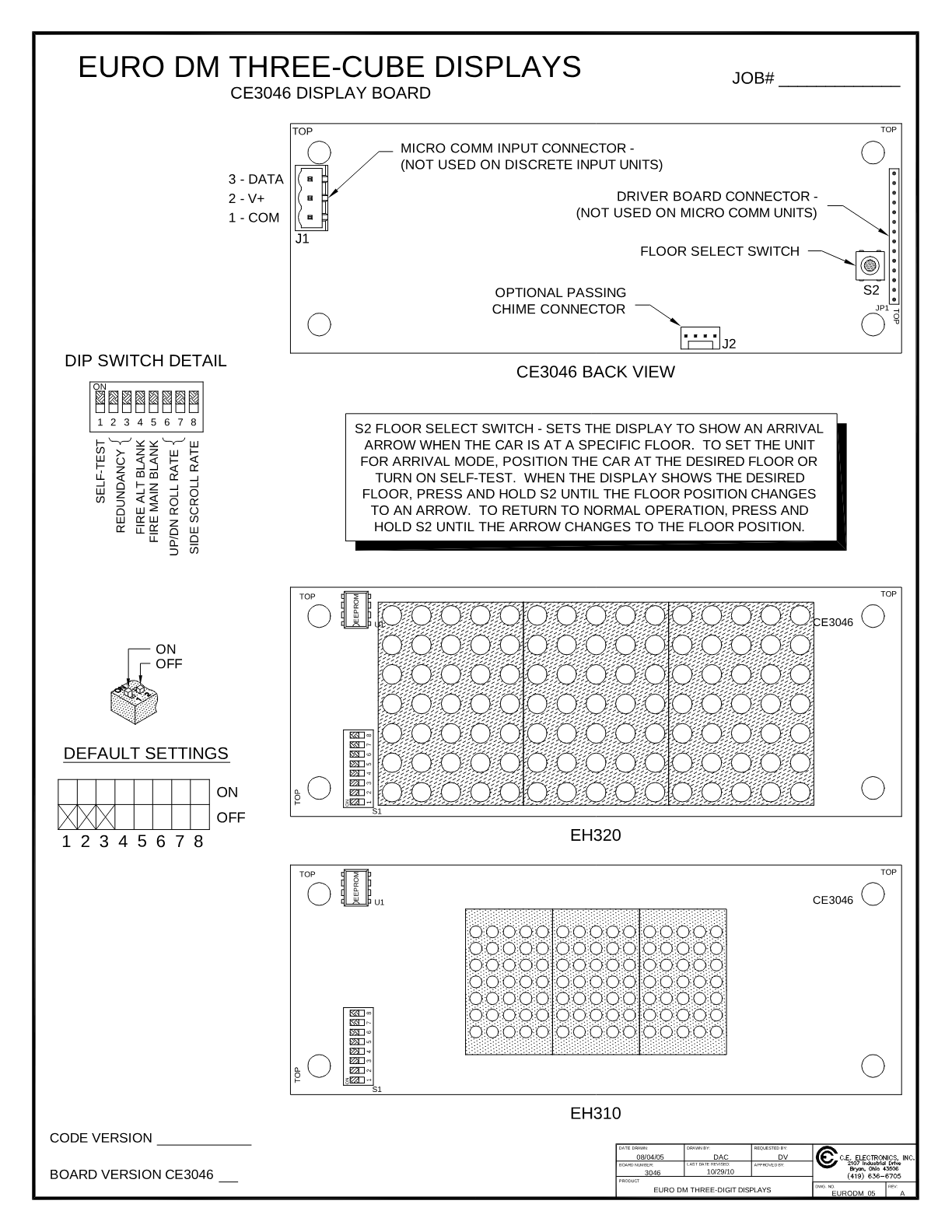

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
