10.4" Standard PI
Our 10.4" Standard PI is the largest display in our Standard range, providing a generous display area for clear passenger information and more detailed graphical layouts. The EMN104-ACX can be customised with graphics, colours and layouts to complement the building or installation, making it well suited to applications where a larger, highly visible position indicator is preferred.
It can display lift position and direction, arrival information, priority messages and destination information, providing a flexible platform for both everyday passenger information and more customised display requirements.
Full-colour indication, built for retrofit.
Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.
Technical specification
Connect it over MICRO COMM.

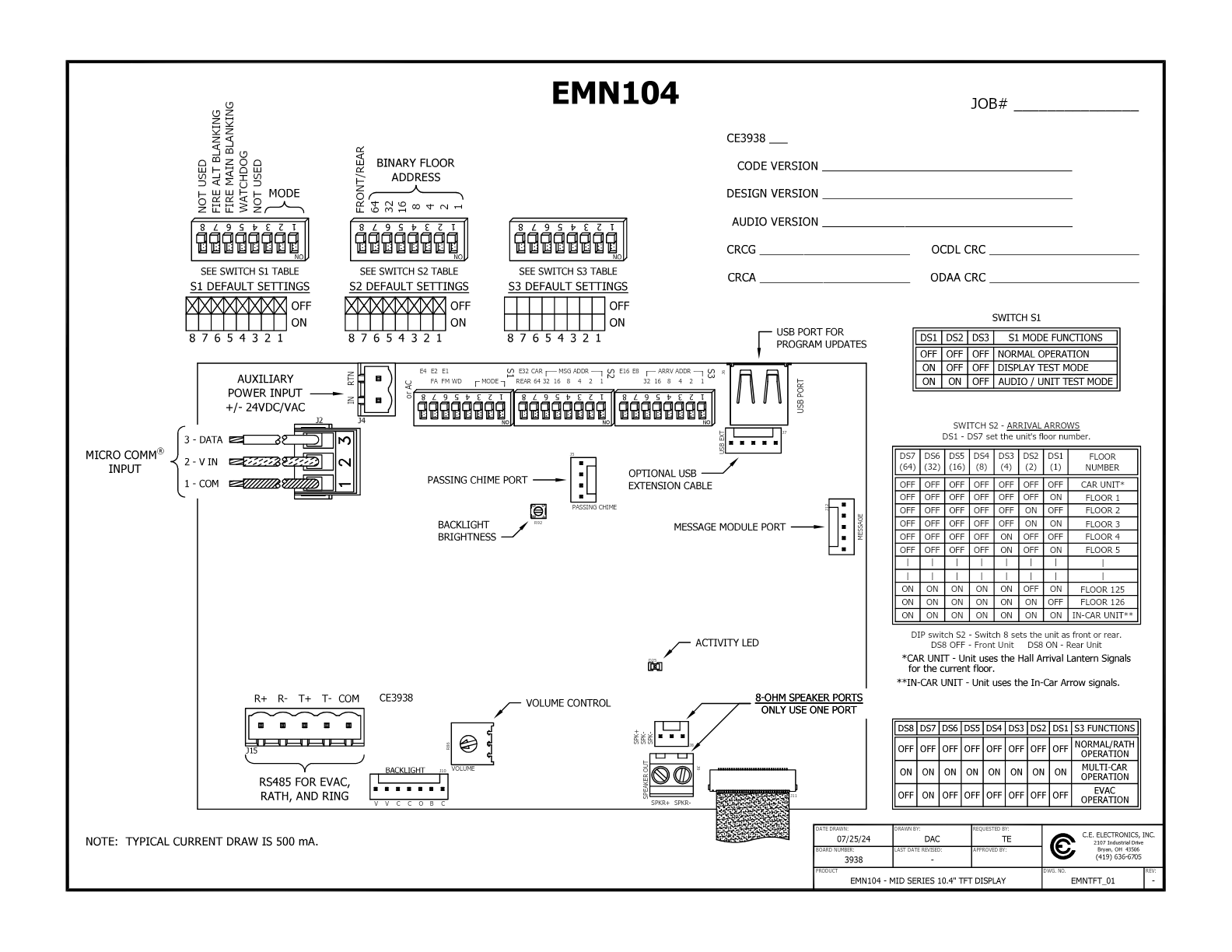

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
