5.7" Mini PI

5.7" Mini PI

EMN57-BXX
Made to order · lead time on request

Our larger 5.7" Mini PI provides additional display space for applications where greater visibility or a larger graphical presentation is preferred. The EMN57-BXX can display lift position and direction, arrival arrows, priority messages and destination information, with graphics customised to complement the building or installation.

Suitable for car operating panels, car transoms and lobby or arrival applications, it retains the compact design and flexible installation options of the Mini PI range.

Request a quote
Documentation
PDFDatasheet↓PDFWiring diagram↓
Display5.7″ colour TFT
IndicationPosition · direction · arrows · messages
Signal inputMICRO COMM
AudioPassing chime · digitised voice
OverviewSpecificationsWiring & InstallationDocumentation

Full-colour indication, built for retrofit.

Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.

Custom graphics
Match house style, logos and floor naming.
Digitised voice
Arrival and passing announcements for ADA / DDA.
USB updatable
Reflash content and settings on site.
Direct fit
Mounts to existing stud patterns and wiring.

Technical specification

Display5.7″ colour TFT
IndicationPosition · direction · arrows · messages
Signal inputMICRO COMM
AudioPassing chime · digitised voice
MountingCar-OP, transom or landing
ComplianceADA / DDA
ApplicationNew install · Modernisation

Connect it over MICRO COMM.

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.

PDFWiring diagramTerminal & connection detail · PDFDownload ↓

Stuck on a connection or signal type? Talk to technical support.

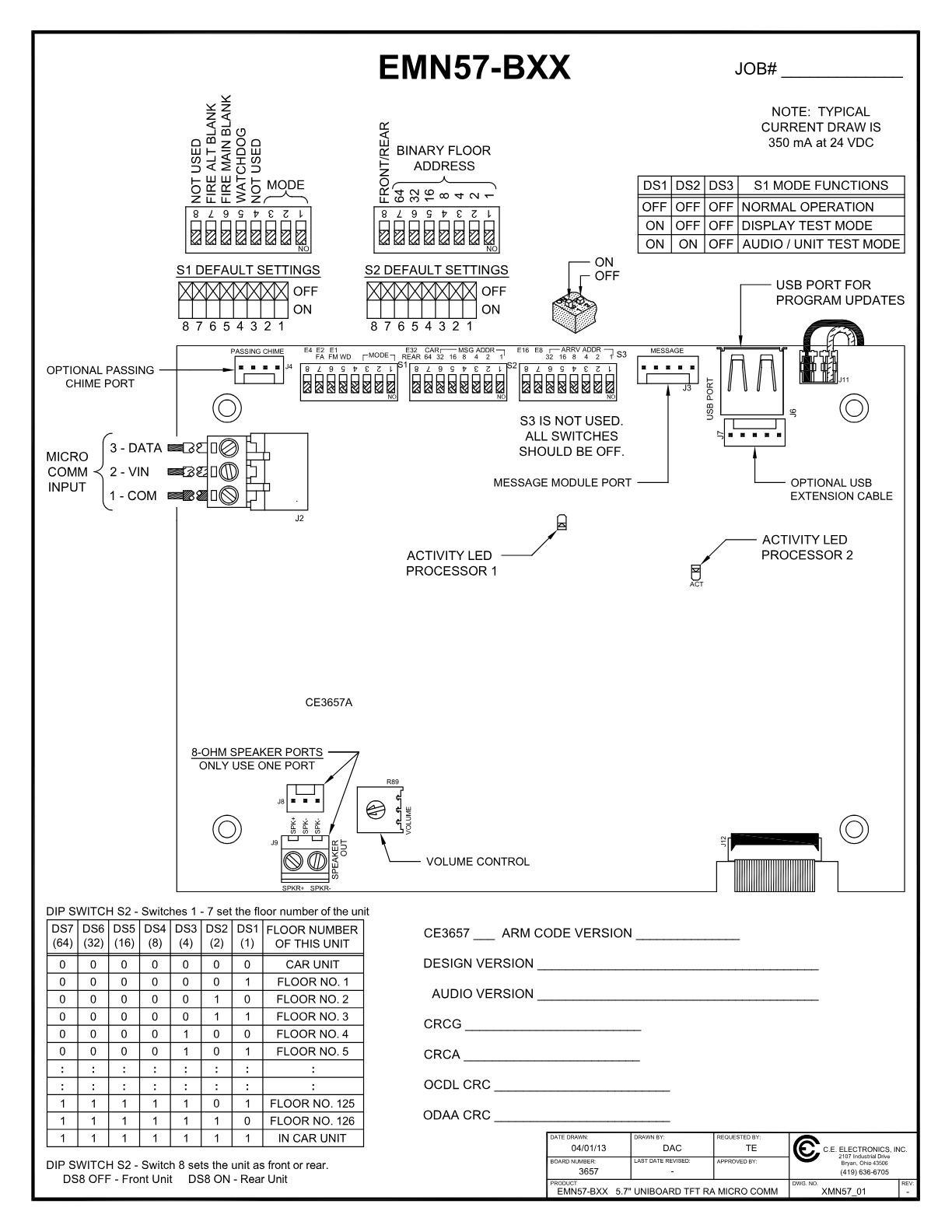

5.7" Mini PI wiring diagram

Everything you need to specify and fit.

PDFDatasheetFull technical datasheet: specifications, dimensions and ordering codes.↓
PDFWiring diagramConnection and terminal wiring for all supported signal types.↓
PDFDimensional drawingCut-out, stud pattern and overall dimensions for fit-up.↓
