4.3" Mini PI
The EMN43-BXX is our compact 4.3" TFT position indicator designed for installations where space is limited without compromising display functionality. It can display lift position and direction, arrival arrows, priority messages and destination information, with graphics customised to complement the building or installation.
Suitable for car operating panels, car transoms and lobby or arrival applications, the EMN43-BXX supports USB updates, self-testing, passing chime output, voice capabilities and automatic display blanking to help extend backlight life.
Full-colour indication, built for retrofit.
Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.
Technical specification
Connect it over MICRO COMM.

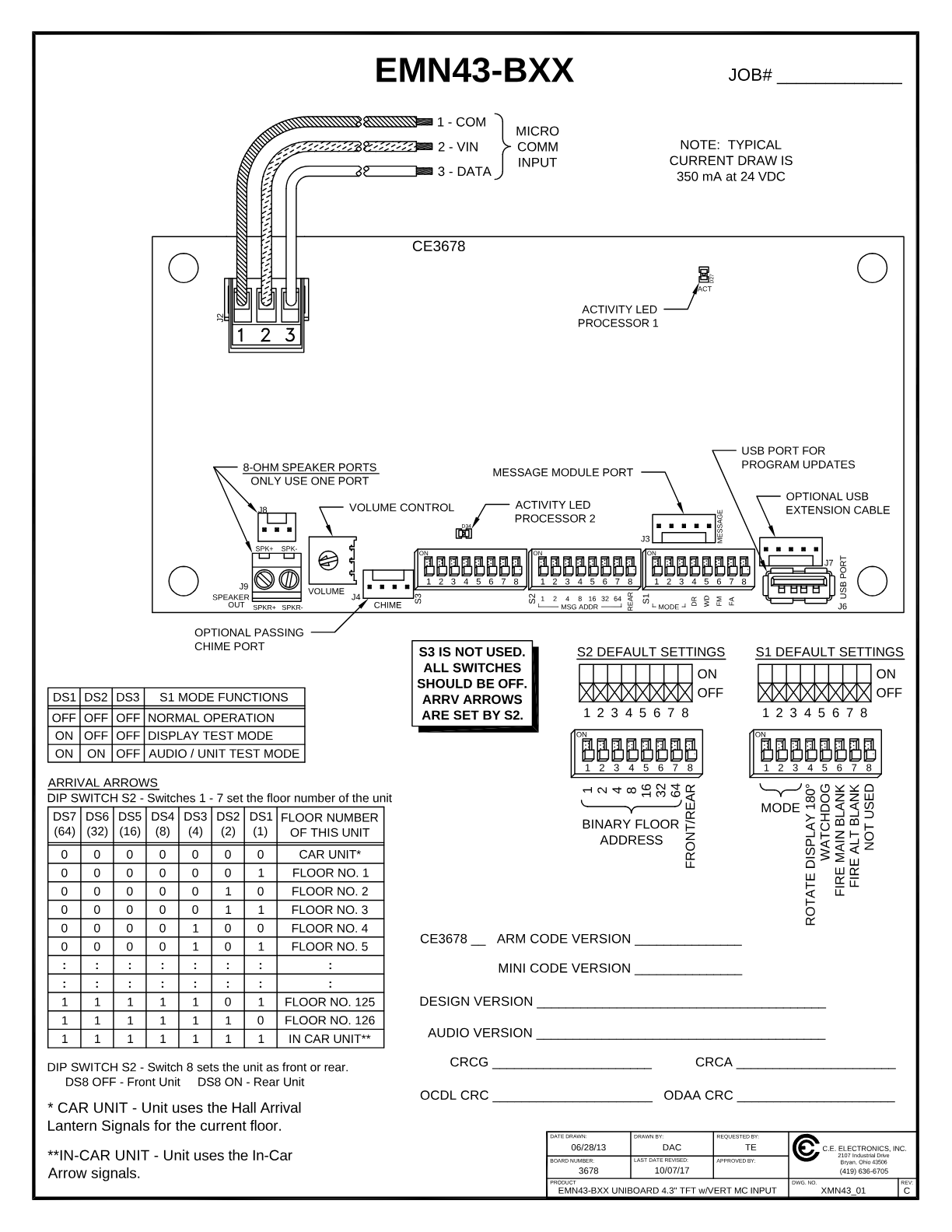

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
