7.0" Standard PI
Our 7.0" Standard PI provides a larger, highly configurable display for lift position, direction, arrival arrows, priority messages and destination information. The EMN70-AIX can be customised with graphics, colours and layouts to complement the building or installation.
Suitable for car operating panels, car transoms and lobby or arrival applications, it also supports USB updates, self-testing, passing chime output and automatic display blanking to help extend backlight life.
Full-colour indication, built for retrofit.
Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.
Technical specification
Connect it over MICRO COMM.

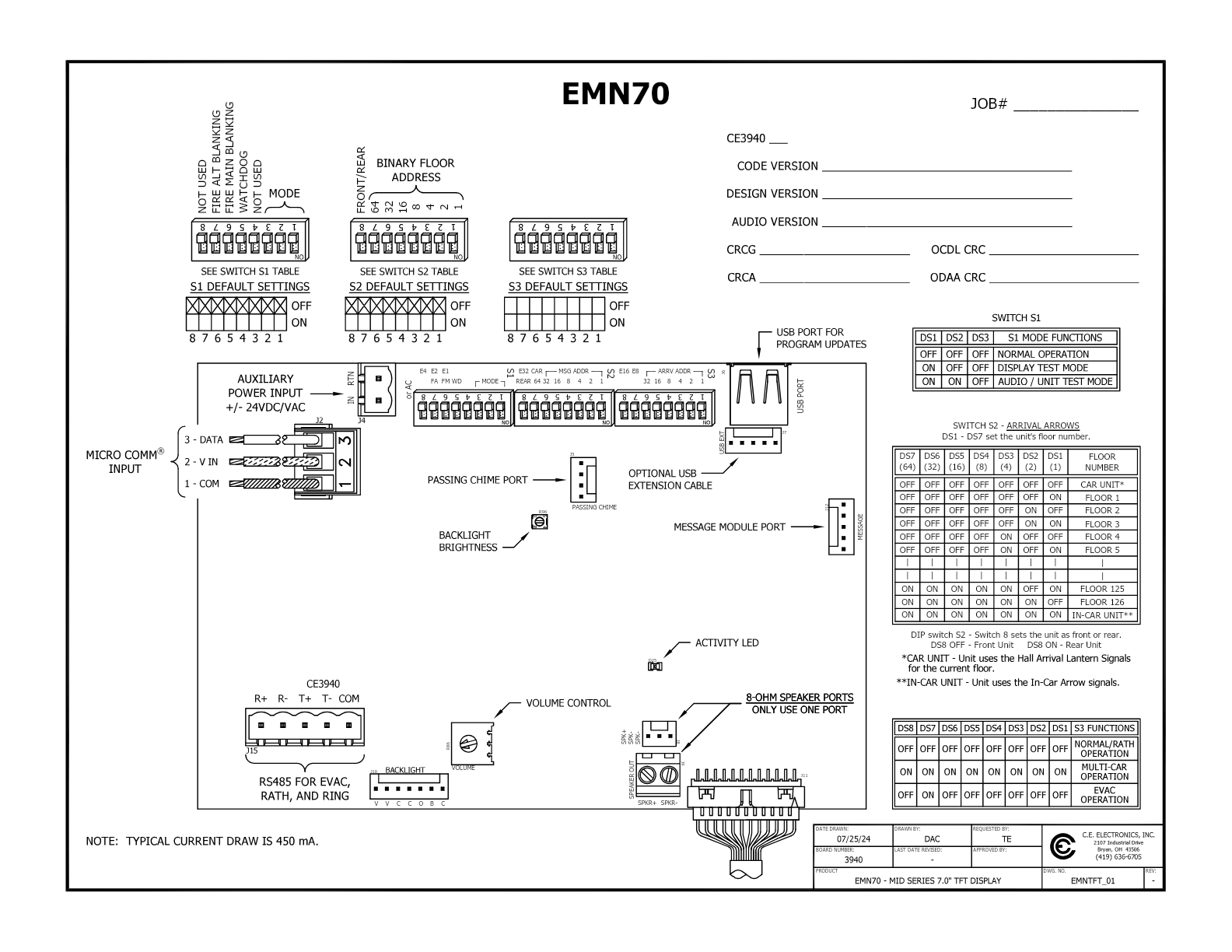

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
