9.0" Standard PI
Our 9.0" Standard PI provides a large, highly visible display area for passenger information, messaging and customised graphics. The EMN90-DHX uses a more square overall format, making it a good fit where a more balanced panel footprint is preferred.
It can display lift position and direction, arrival information, priority messages and destination information, with graphics customised to complement the building or installation.
Full-colour indication, built for retrofit.
Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.
Technical specification
Connect it over MICRO COMM.

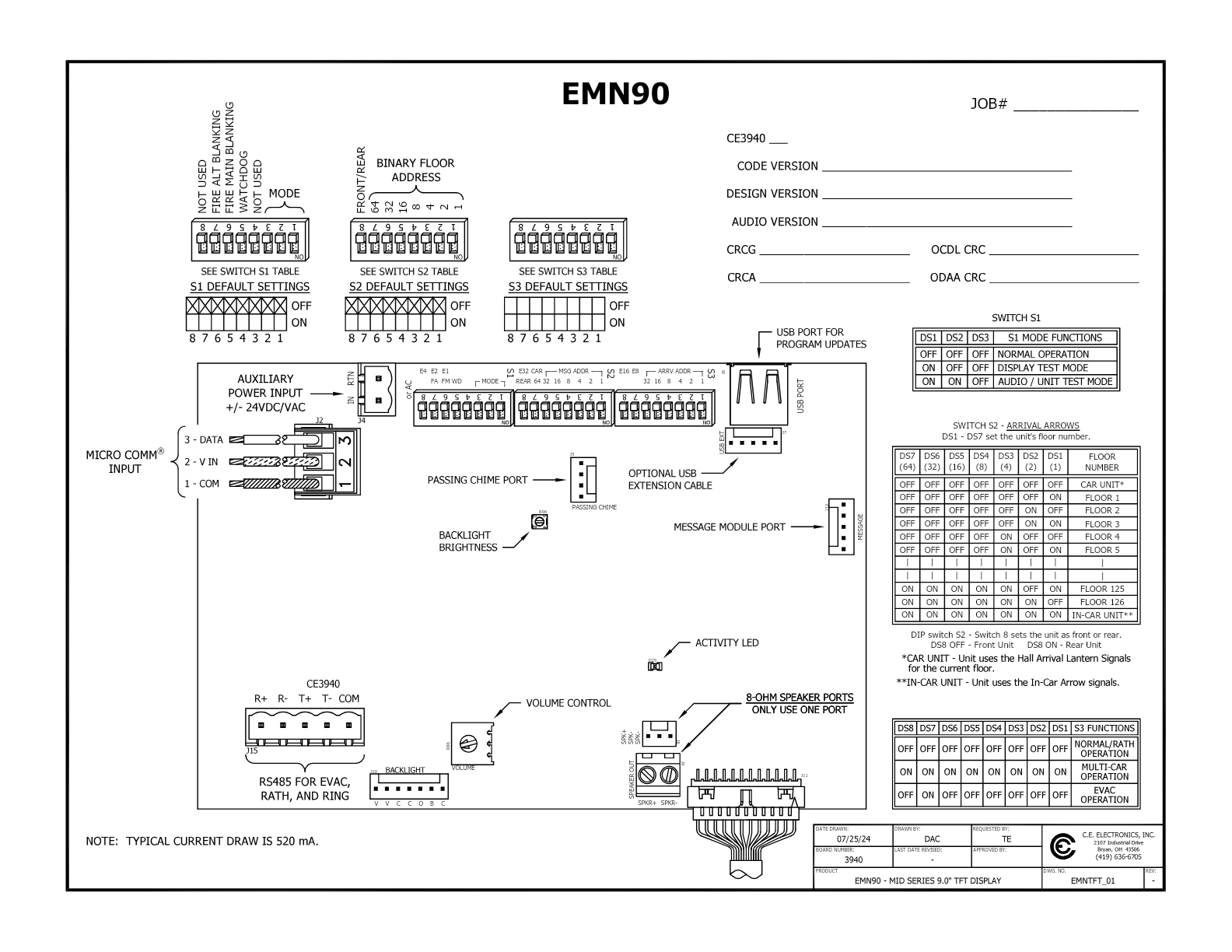

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
