1 Character 30mm Dot Matrix
Our EV110-XXXXX provides straightforward single-character floor position indication within a narrow vertical format. Its 30 mm LED dot matrix display can show alphanumeric or custom characters, providing flexibility for different floor naming conventions.
The 60 mm wide × 160 mm high format makes it particularly useful where available panel width is restricted. It also supports scrolling and rollover, message inputs, passing chime output, self-testing and an optional hall lantern function.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

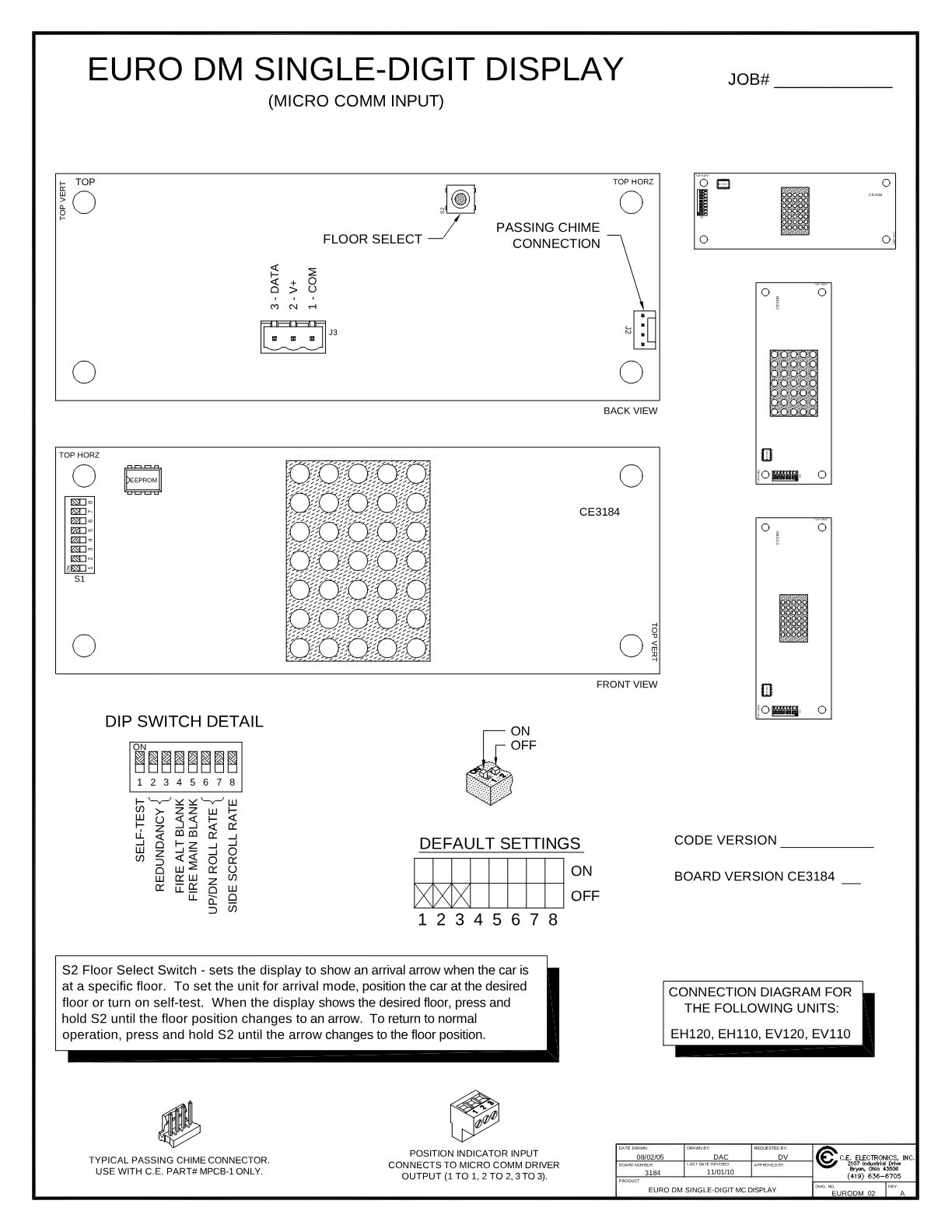

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
