1 Character 50mm Dot Matrix
Our EV120-XXXXX uses a 50 mm LED dot matrix display to provide clear single-character floor indication in a vertical configuration. The display supports alphanumeric and custom characters, providing flexibility for different floor designation requirements.
With a footprint of 60 mm × 160 mm and a depth of just 32 mm, the EV120-XXXXX provides a useful combination of larger character size, narrow width and shallow mounting depth.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

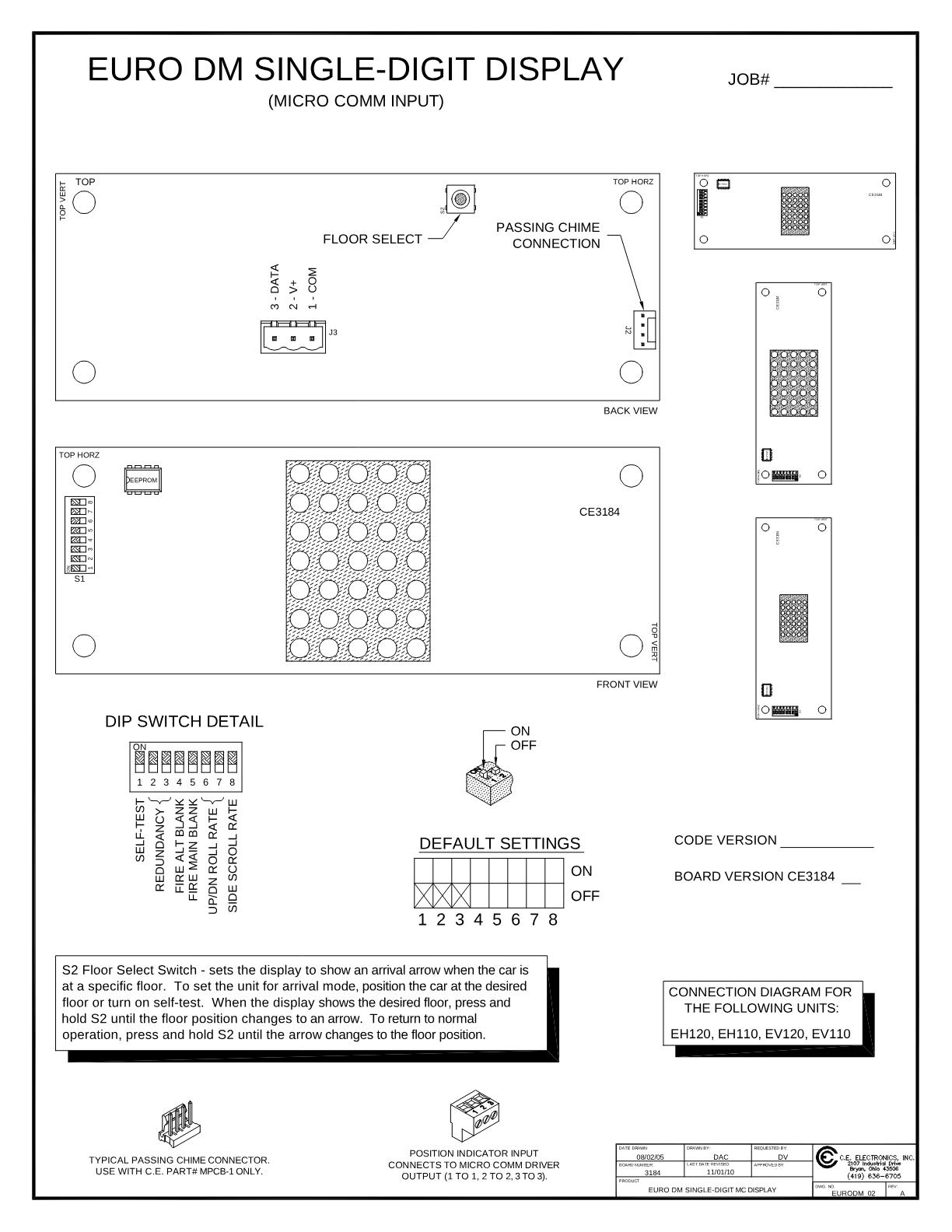

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
