2 Character 50mm Dot Matrix

2 Character 50mm Dot Matrix

EV210-XXXXX
Made to order · lead time on request

Our EV210-XXXXX provides floor position and optional travel direction information using 30 mm LED dot matrix characters. Its display can present a single alphanumeric or custom floor character with a direction arrow, or use both positions for a two-character floor designation.

The narrow 60 mm × 160 mm vertical footprint makes the EV210-XXXXX particularly useful where horizontal panel space is restricted but both floor and direction information need to be accommodated.

Request a quote
Documentation
PDFDatasheet↓PDFWiring diagram↓
Display2-character 50 mm LED dot matrix
IndicationPosition · direction · scrolling messages
Signal inputLatched · MICRO COMM
AudioPassing chime output
OverviewSpecificationsWiring & InstallationDocumentation

Crisp LED position indication.

A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.

Scrolling & rollover
Single digit with arrow or dual-digit floors.
Hall lantern option
Add directional landing indication.
Passing chime
Audible passing indication.
Direct fit
Self-contained; mounts to existing fixtures.

Technical specification

Display2-character 50 mm LED dot matrix
IndicationPosition · direction · scrolling messages
Signal inputLatched · MICRO COMM
AudioPassing chime output
MountingCar-OP, transom or hall
ApplicationModernisation

Connect it over MICRO COMM.

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.

PDFWiring diagramTerminal & connection detail · PDFDownload ↓

Stuck on a connection or signal type? Talk to technical support.

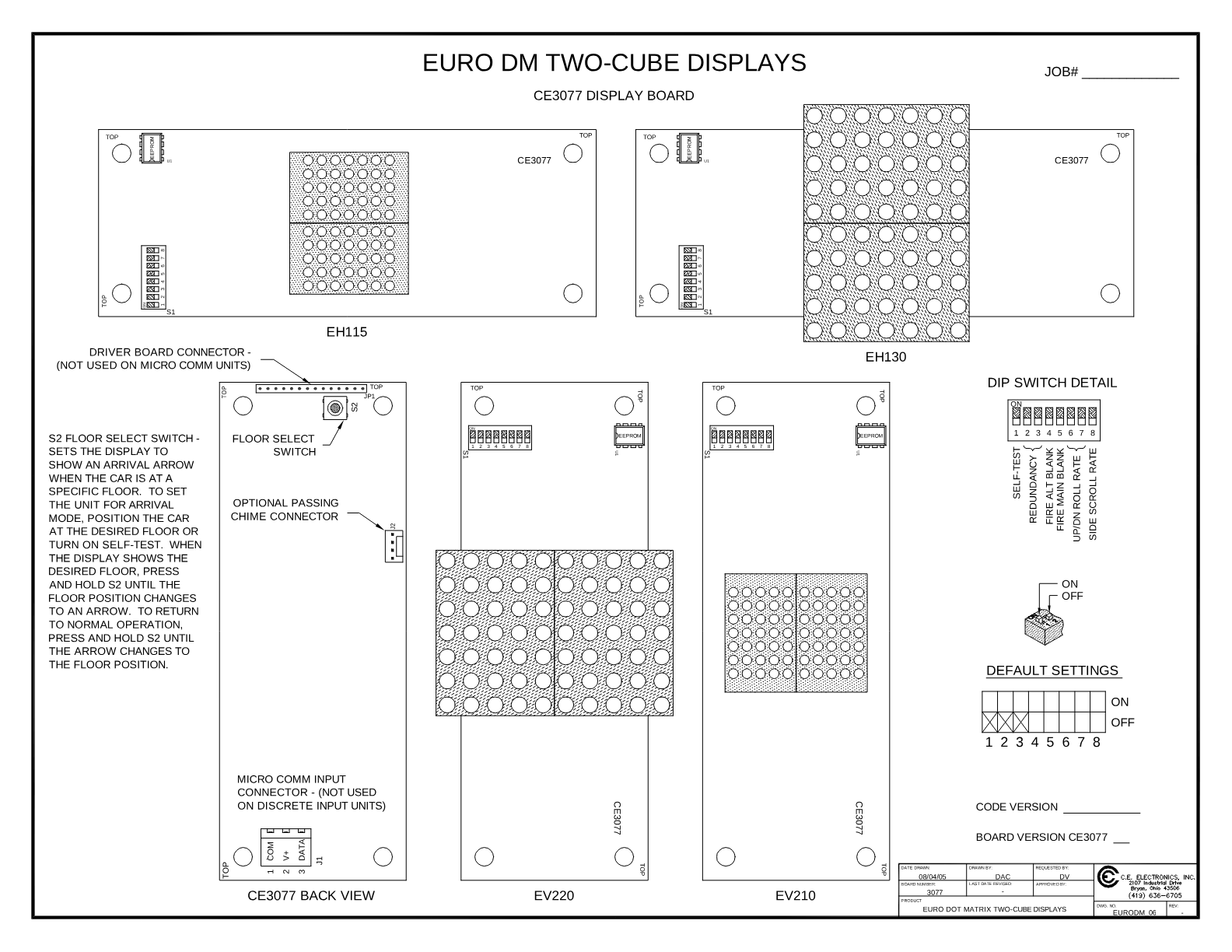

2 Character 50mm Dot Matrix wiring diagram

Everything you need to specify and fit.

PDFDatasheetFull technical datasheet: specifications, dimensions and ordering codes.↓
PDFWiring diagramConnection and terminal wiring for all supported signal types.↓
