3 Character 30mm Dot Matrix
Our EV310-XXXXX provides clear floor position and travel direction information using 30 mm LED dot matrix characters. Its display arrangement allows a single alphanumeric or custom floor character to be presented with separate UP and DOWN direction arrows, giving passengers clear position and movement information in one vertical indicator.
The 68 mm wide × 160 mm high format maintains a relatively narrow installation footprint whilst providing dedicated space for both floor and direction indication.
Crisp LED position indication.
A self-contained dot-matrix unit that drops into the existing fixture and reads the signals already on your controller: single digit with an arrow, or dual-digit floor designations.
Technical specification
Connect it over MICRO COMM.

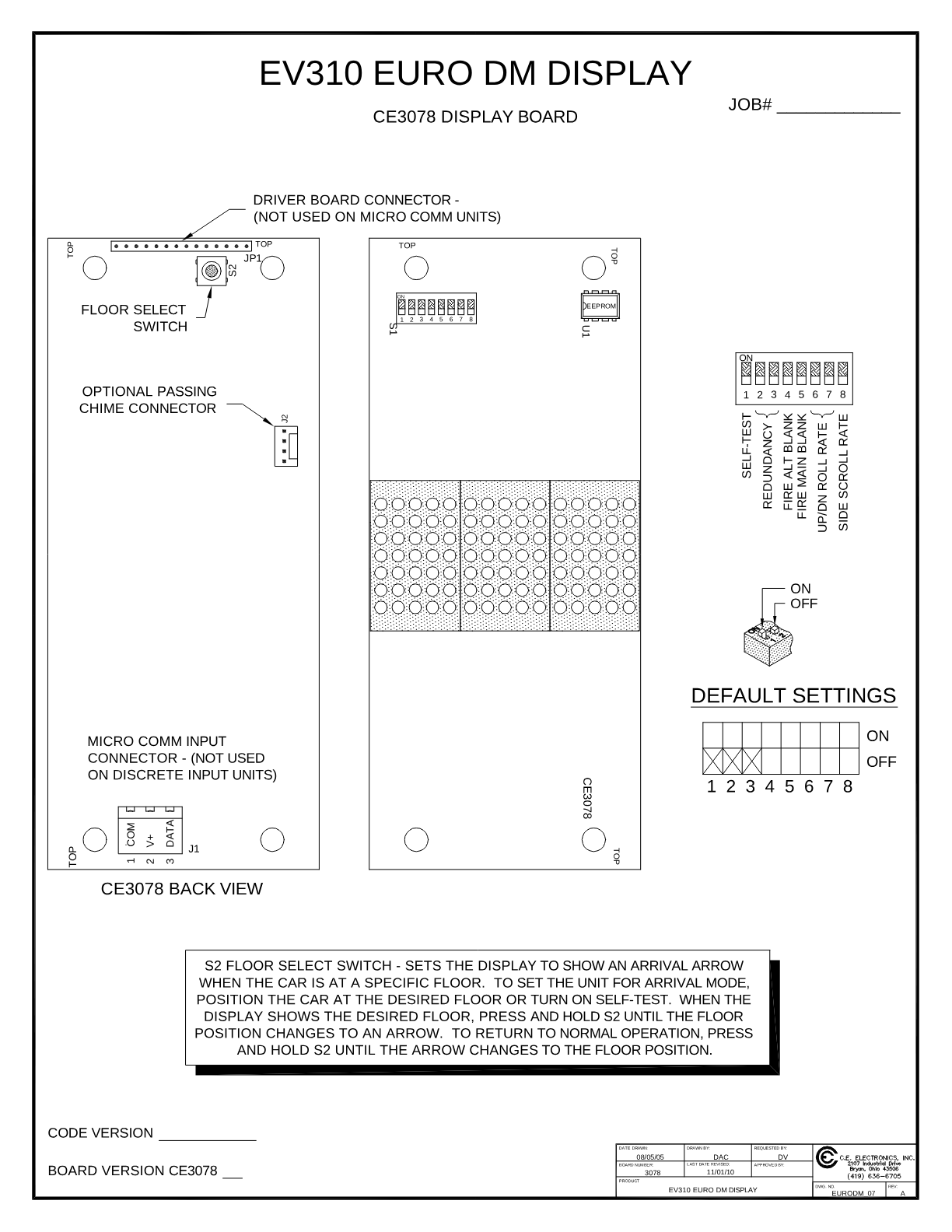

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
