10.4" Standard PI
Our 10.4" Elite PI Pro provides a large, highly configurable display for lift position, direction, passenger information and messaging. Screen layouts can be customised with different backgrounds, fonts, arrow styles and display elements, allowing the finished design to complement the building or installation.
The EX104-BX2 uses a slimmer mounting format than the CX2, providing an alternative footprint for installations where a narrower display assembly is preferred whilst retaining the full functionality of the EX104 platform.
Full-colour indication, built for retrofit.
Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.
Technical specification
Connect it over MICRO COMM.

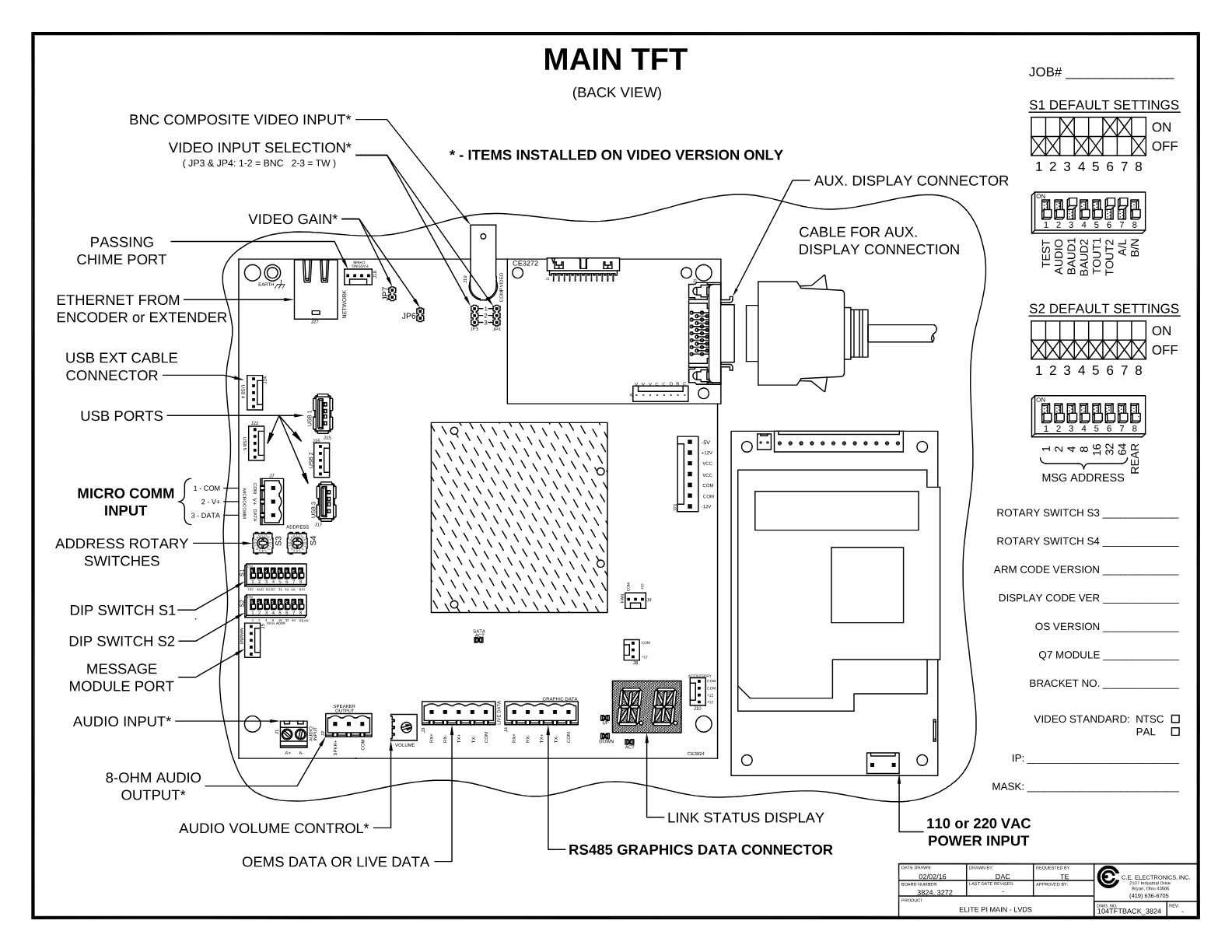

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
