10.4" Standard PI
Our 10.4" Elite PI Pro provides a large, highly configurable display for lift position, direction, passenger information and messaging. Screen layouts can be customised with different backgrounds, fonts, arrow styles and display elements, allowing the finished design to complement the building or installation.
The EX104-SX2 is the most compact mounting option in the EX104 range. By using an external power supply, the display assembly requires less space within the panel, making it well suited to installations where the available mounting area is particularly restricted.
Full-colour indication, built for retrofit.
Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.
Technical specification
Connect it over MICRO COMM.

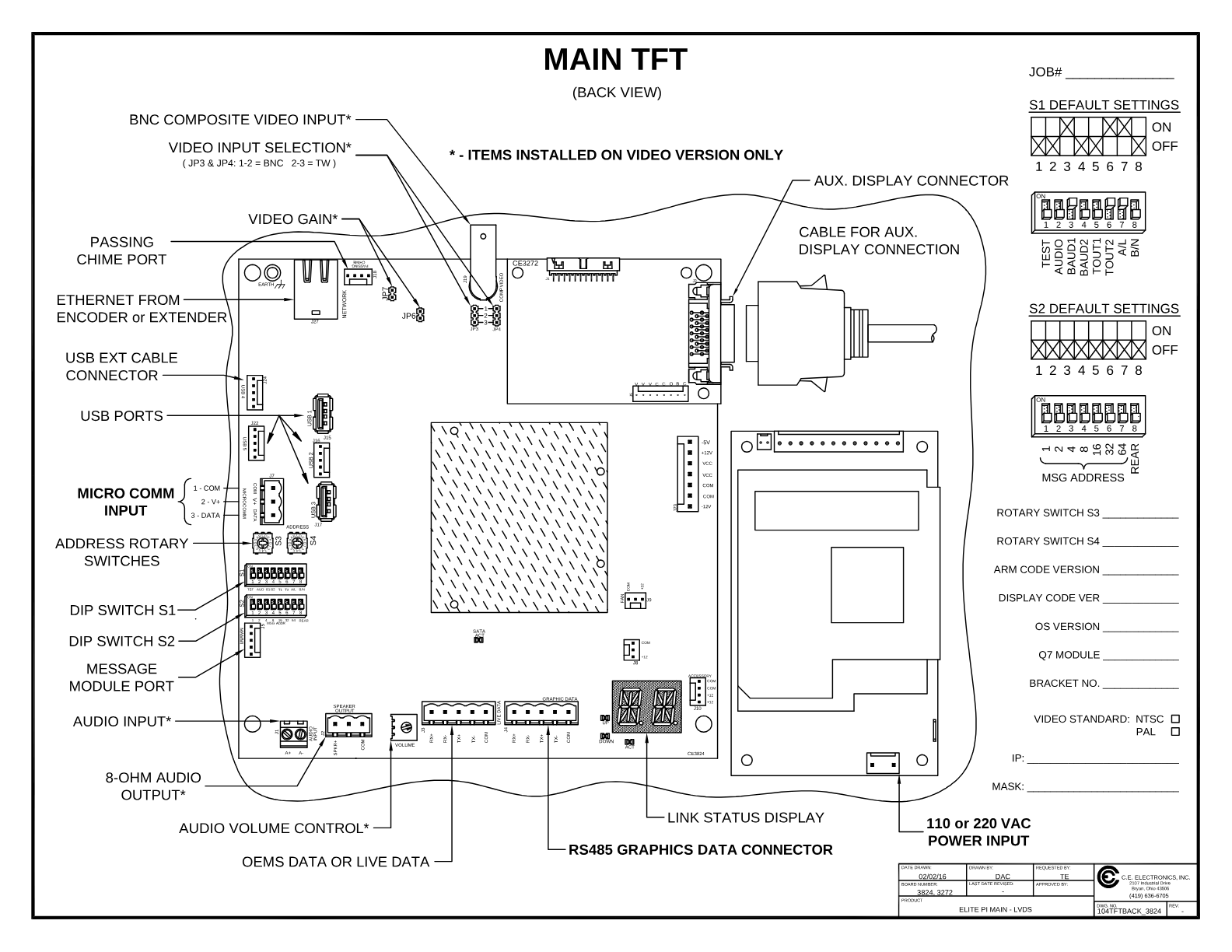

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
