12" Elite PI

12" Elite PI

EX121-AX2
Made to order · lead time on request

Our 12" Elite PI provides a large, highly configurable display for lift position, direction, passenger information and messaging. Screen layouts can be customised with different backgrounds, fonts, arrow styles and display elements, with support for floor, priority and time-based messages.

The EX121-AX2 uses the more square mounting format within the EX121 range, providing a balanced footprint for installations where additional panel height is available.

Request a quote
Documentation
PDFDatasheet↓PDFWiring diagram↓
Display12″ colour TFT
IndicationPosition · direction · arrows · messages
Signal inputMICRO COMM
AudioPassing chime · digitised voice
OverviewSpecificationsWiring & InstallationDocumentation

Full-colour indication, built for retrofit.

Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.

Custom graphics
Match house style, logos and floor naming.
Digitised voice
Arrival and passing announcements for ADA / DDA.
USB updatable
Reflash content and settings on site.
Direct fit
Mounts to existing stud patterns and wiring.

Technical specification

Display12″ colour TFT
IndicationPosition · direction · arrows · messages
Signal inputMICRO COMM
AudioPassing chime · digitised voice
MountingCar-OP, transom or landing
ComplianceADA / DDA
ApplicationNew install · Modernisation

Connect it over MICRO COMM.

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.

PDFWiring diagramTerminal & connection detail · PDFDownload ↓

Stuck on a connection or signal type? Talk to technical support.

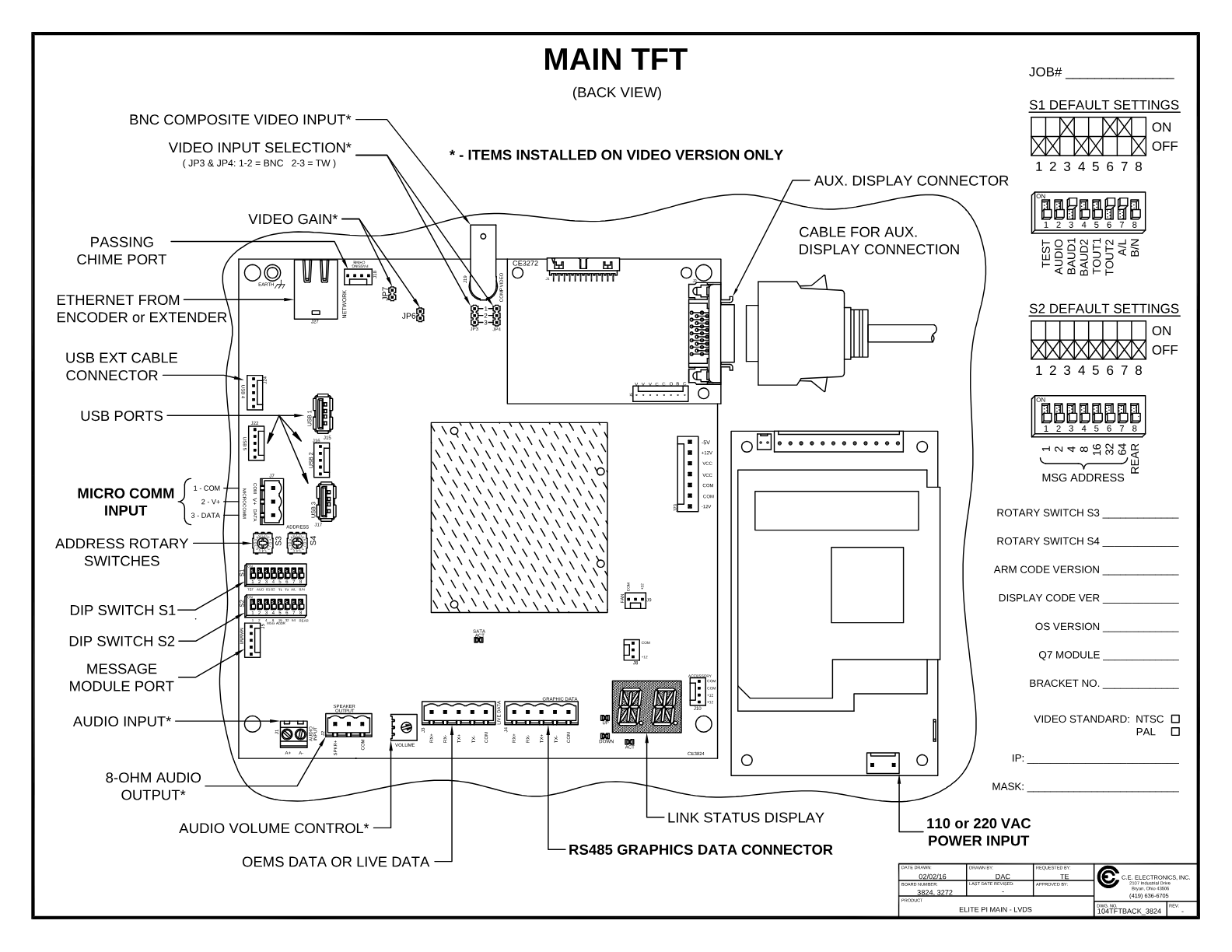

12" Elite PI wiring diagram

Everything you need to specify and fit.

PDFDatasheetFull technical datasheet: specifications, dimensions and ordering codes.↓
PDFWiring diagramConnection and terminal wiring for all supported signal types.↓
PDFDimensional drawingCut-out, stud pattern and overall dimensions for fit-up.↓
