15.6" Elite PI
Our 15.6" widescreen Elite PI provides a large, highly configurable display for lift position, direction, passenger information and messaging. Screen layouts can be customised with different backgrounds, fonts, arrow styles and display elements, with support for floor, priority and time-based messages.
The EX156-AI2X introduces a wide 16:10 display format, providing additional horizontal space for more detailed layouts, building information and graphical content. With HD 720p display and streaming capabilities, it is well suited to installations where the position indicator forms a more prominent part of the passenger information system.
Full-colour indication, built for retrofit.
Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.
Technical specification
Connect it over MICRO COMM.

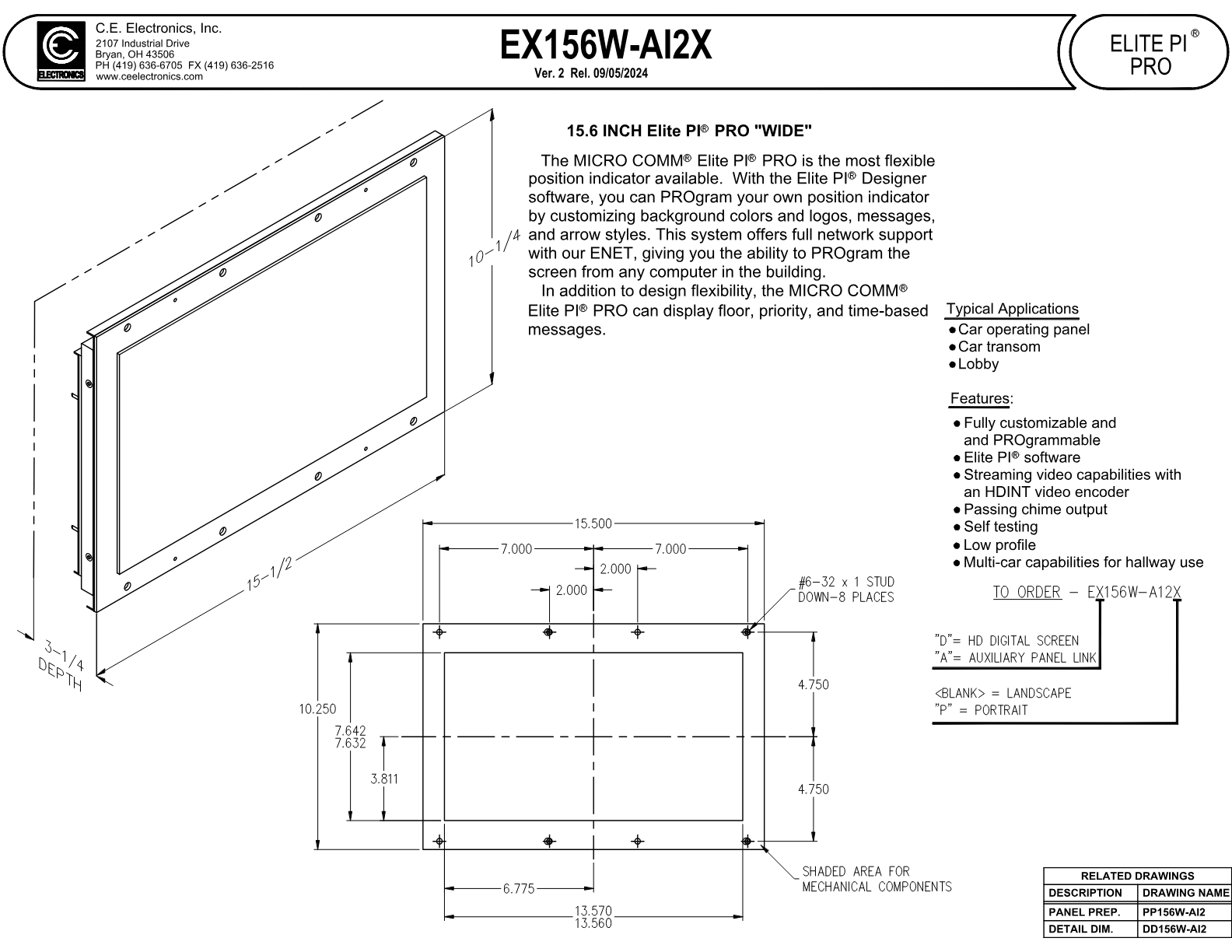

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
