18.5" Elite PI
Our 18.5" widescreen Elite PI provides a large, highly configurable display for lift position, direction, passenger information and messaging. Screen layouts can be customised with graphics, text and other display elements, with support for scheduled, floor-based and priority messaging.
The EX185W-AA2X uses a wide-format display, providing additional horizontal space for more detailed layouts, building information and graphical content. Its larger screen makes it particularly well suited to installations where the display forms a prominent part of the passenger information system.
Full-colour indication, built for retrofit.
Designed as a direct replacement, it mounts to existing stud patterns and reads the signals already on your controller over MICRO COMM, so modernisation is a swap, not a rebuild.
Technical specification
Connect it over MICRO COMM.

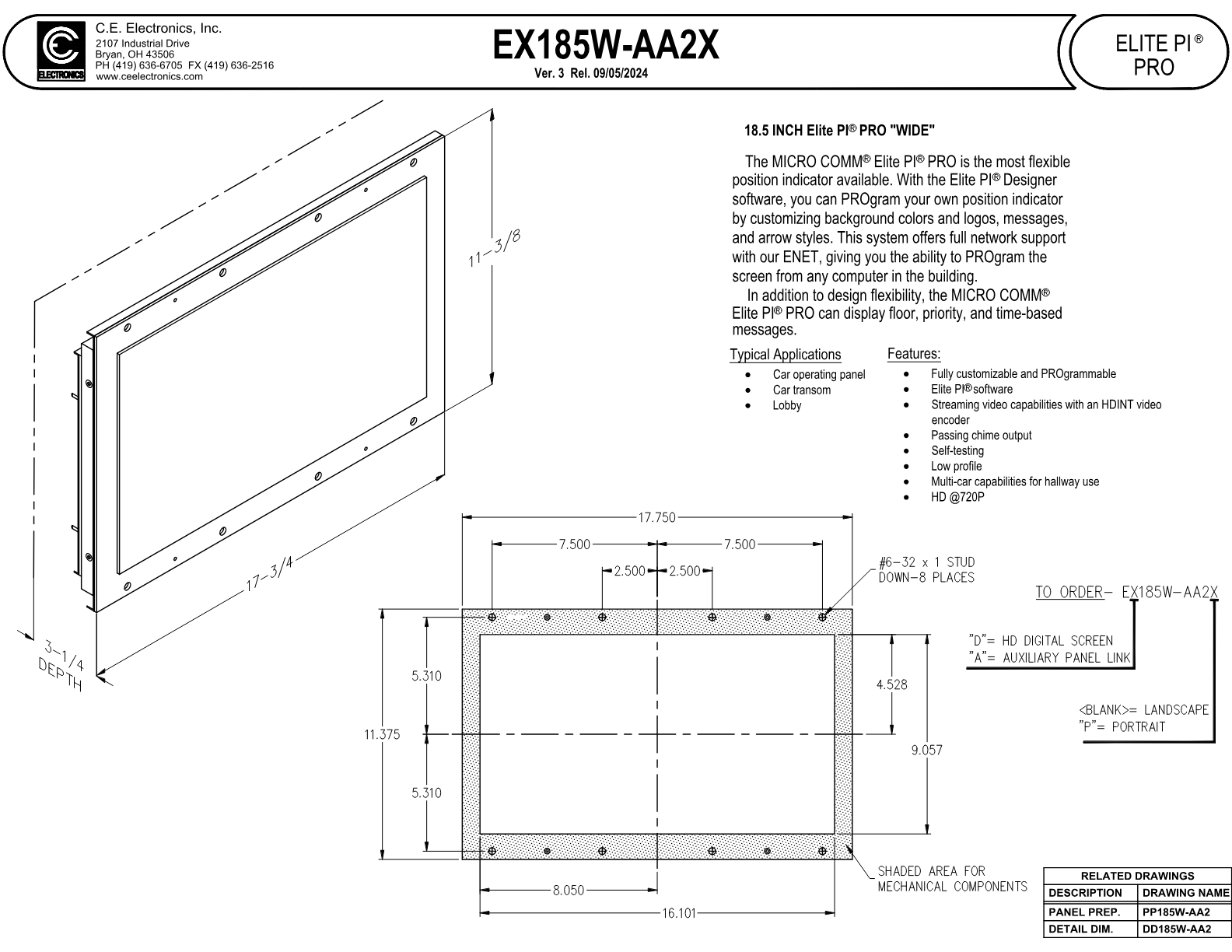

Terminal layouts and connection detail for the MICRO COMM input are in the wiring diagram. Cut-out, stud pattern and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
