LED EXTENDED DESTINATION CUBE
Our MCUBE-XXX provides clear LED destination information for destination-based lift systems, using a three-sided display to provide a 180° viewing angle. Character sizes from 2" to 3" make the assigned lift easy to identify from different positions within the lobby.
Designed to connect directly to the MICRO COMM network, the MCUBE-XXX includes an integrated speaker for arrival and destination tones, with DIP-switch selectable programming. Long-life solid-state LEDs are rated for 100,000 hours, with an optional destination voice card available where additional audible passenger information is required.
Destination indication, car and landing.
Built for destination-control dispatching and driven over MICRO COMM, mounted to suit the car and landing fixtures you already have.
Technical specification
Connect it over MICRO COMM.

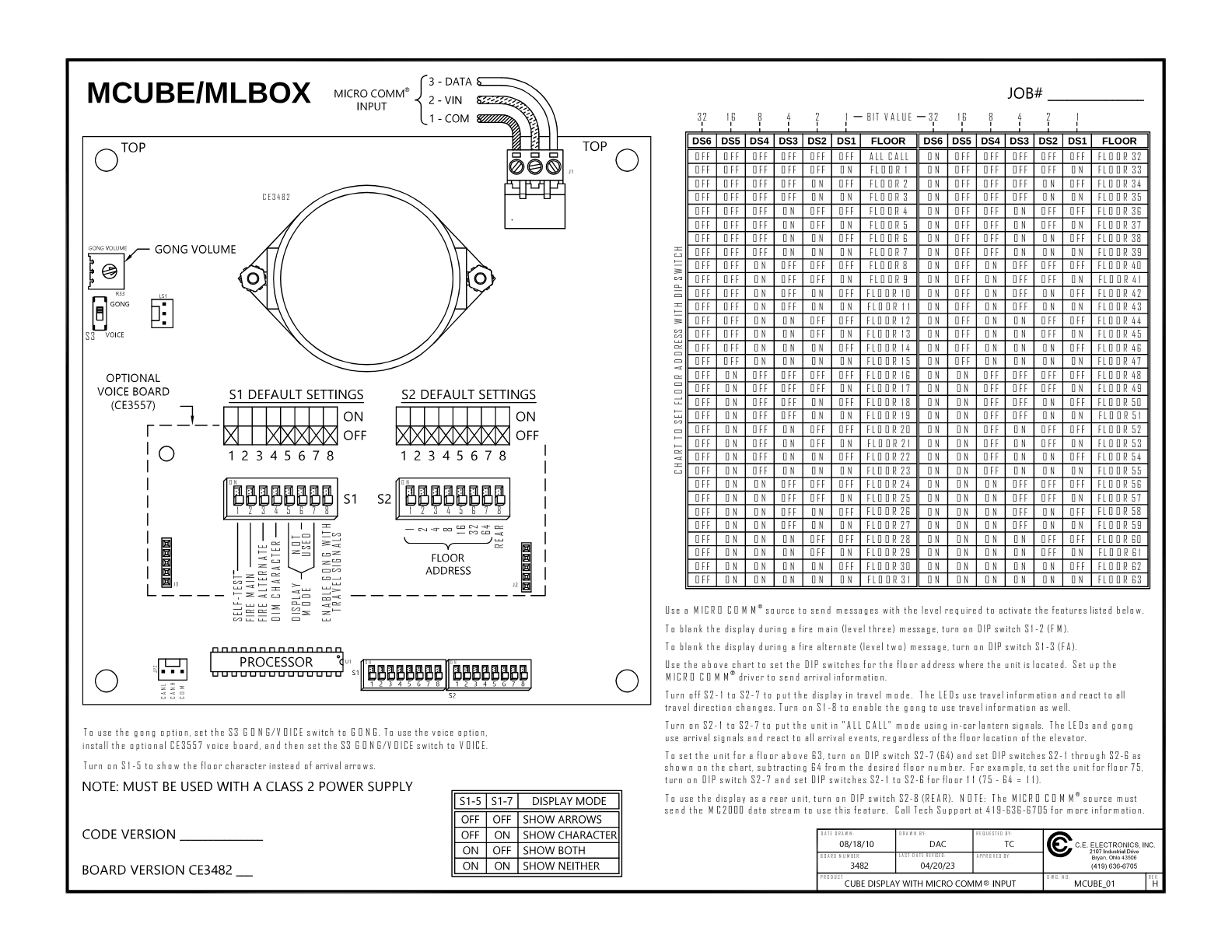

Terminal and connection detail for the MICRO COMM input is in the wiring diagram; cut-out and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
