1″ - 10 DUAL DIGIT DESTINATION ANNUNCIATOR
Our MDBA10-VBXMCX is designed for destination-based lift systems, providing ten dual-digit LED positions for clear presentation of assigned destination floors. Each position can display alphanumeric characters, allowing the annunciator to accommodate a wide range of floor designations.
Up to ten landings can be displayed simultaneously. Where additional destinations need to be shown, the display automatically scrolls through the remaining floors, providing a compact solution for communicating destination information in larger lift groups.
Destination indication, car and landing.
Built for destination-control dispatching and driven over MICRO COMM, mounted to suit the car and landing fixtures you already have.
Technical specification
Connect it over MICRO COMM.

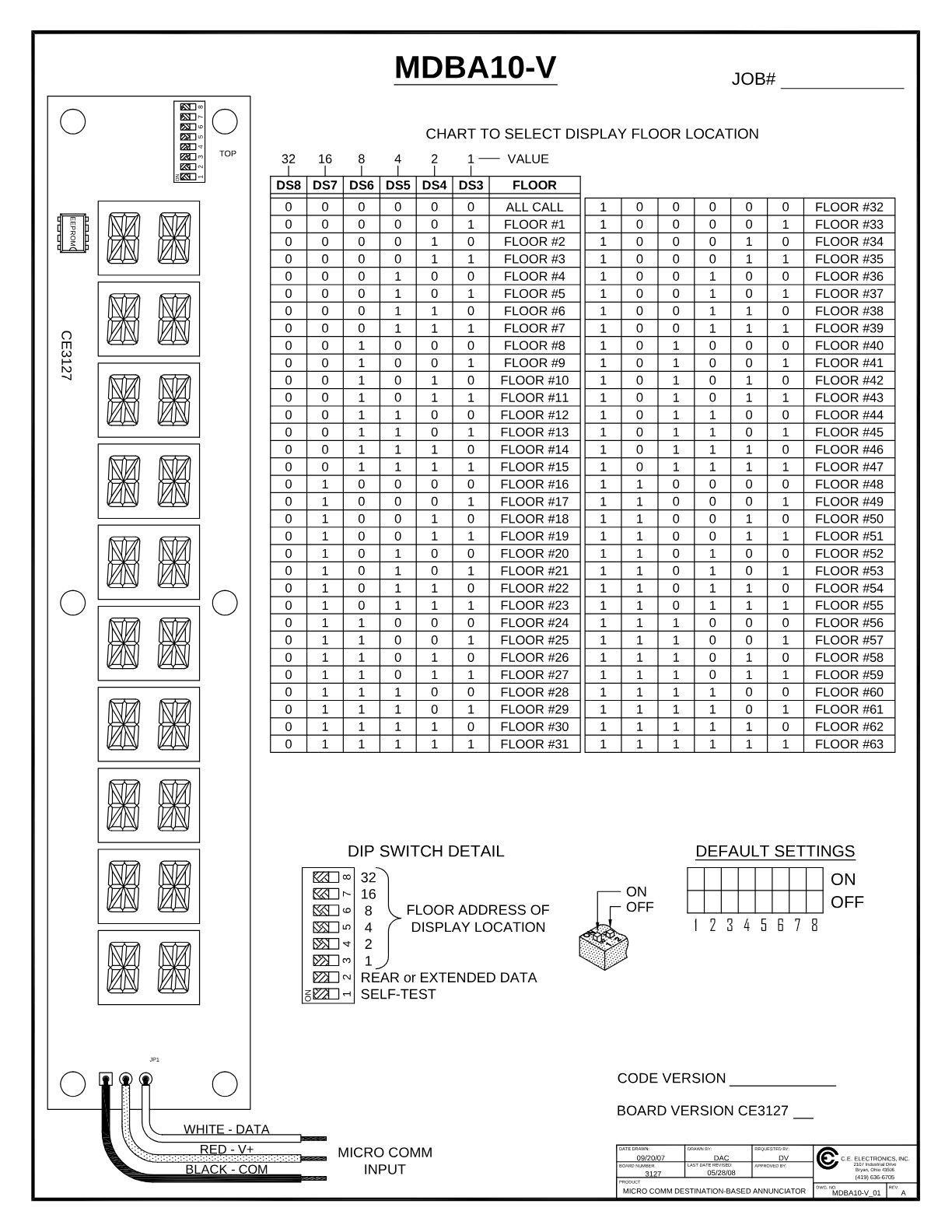

Terminal and connection detail for the MICRO COMM input is in the wiring diagram; cut-out and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
