SCROLLING MESSAGE DISPLAY
Our MDBAXX-HDXXXX provides a clear, large-format LED display for destination-based lift systems, presenting destination information for between four and eight landings at a time. Where additional destinations need to be displayed, the unit automatically scrolls through the remaining floors.
The display supports alphanumeric characters using 2.2" LEDs and is available in 8, 12 or 16-character configurations to suit different installations. Designed to receive destination information over the MICRO COMM network, it is available with red, green, blue or white LED characters.
Destination indication, car and landing.
Built for destination-control dispatching and driven over MICRO COMM, mounted to suit the car and landing fixtures you already have.
Technical specification
Connect it over MICRO COMM.

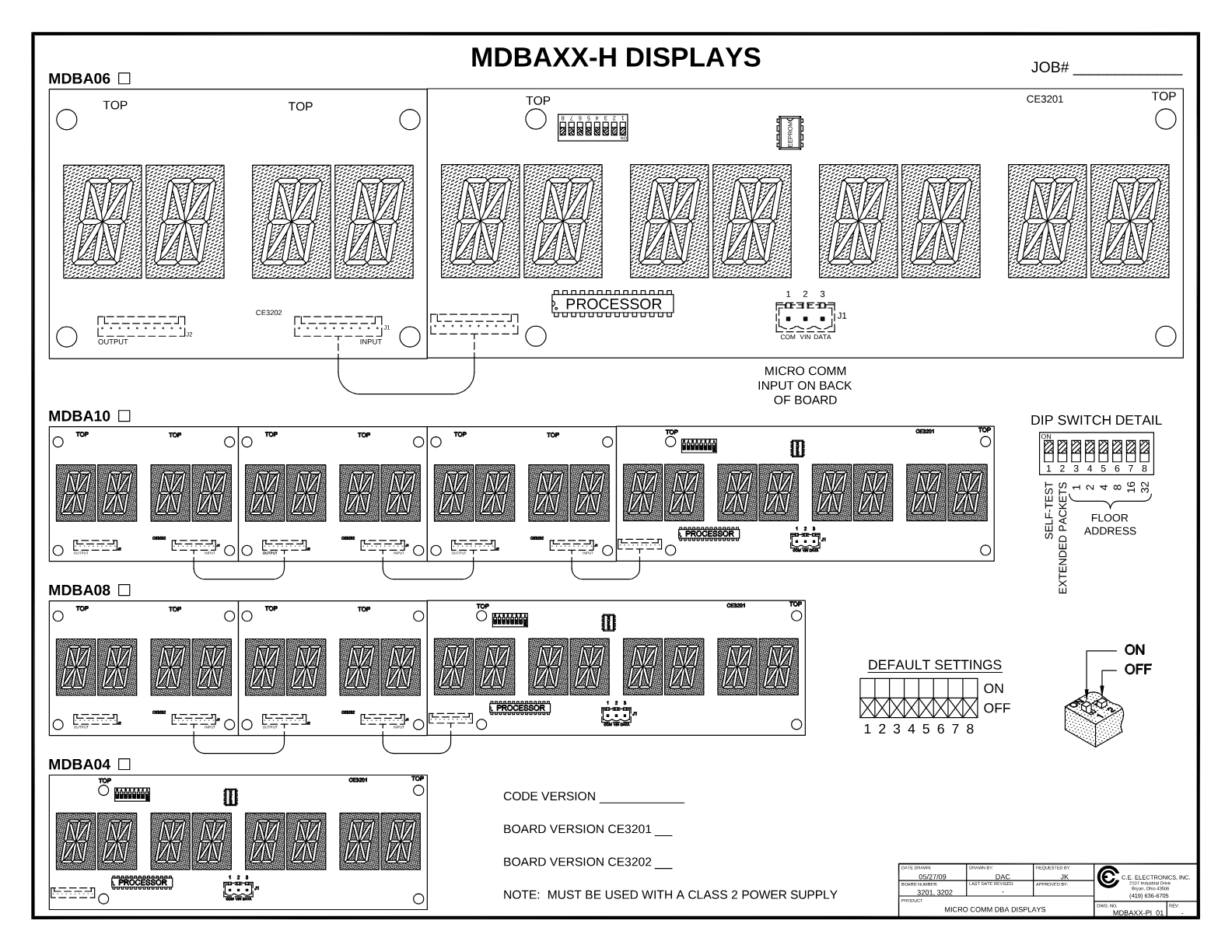

Terminal and connection detail for the MICRO COMM input is in the wiring diagram; cut-out and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
