LED EXTENDED DESTINATION ARROW
Our MFLAG-XXXXXXX provides clear arrival and destination information for destination-based lift systems, using a projecting flag-style display to provide a 180° viewing angle. The unit combines directional arrival arrows with large 2.5" and 3" destination characters, making the assigned lift easy to identify from different positions within the lobby.
Designed to connect directly to the MICRO COMM network, the MFLAG-XXXXXXX also includes an integrated speaker for arrival gong and destination tones, with DIP-switch selectable programming. Long-life solid-state LEDs are rated for 100,000 hours, with a range of LED colour options available to suit the installation.
Destination indication, car and landing.
Built for destination-control dispatching and driven over MICRO COMM, mounted to suit the car and landing fixtures you already have.
Technical specification
Connect it over MICRO COMM.

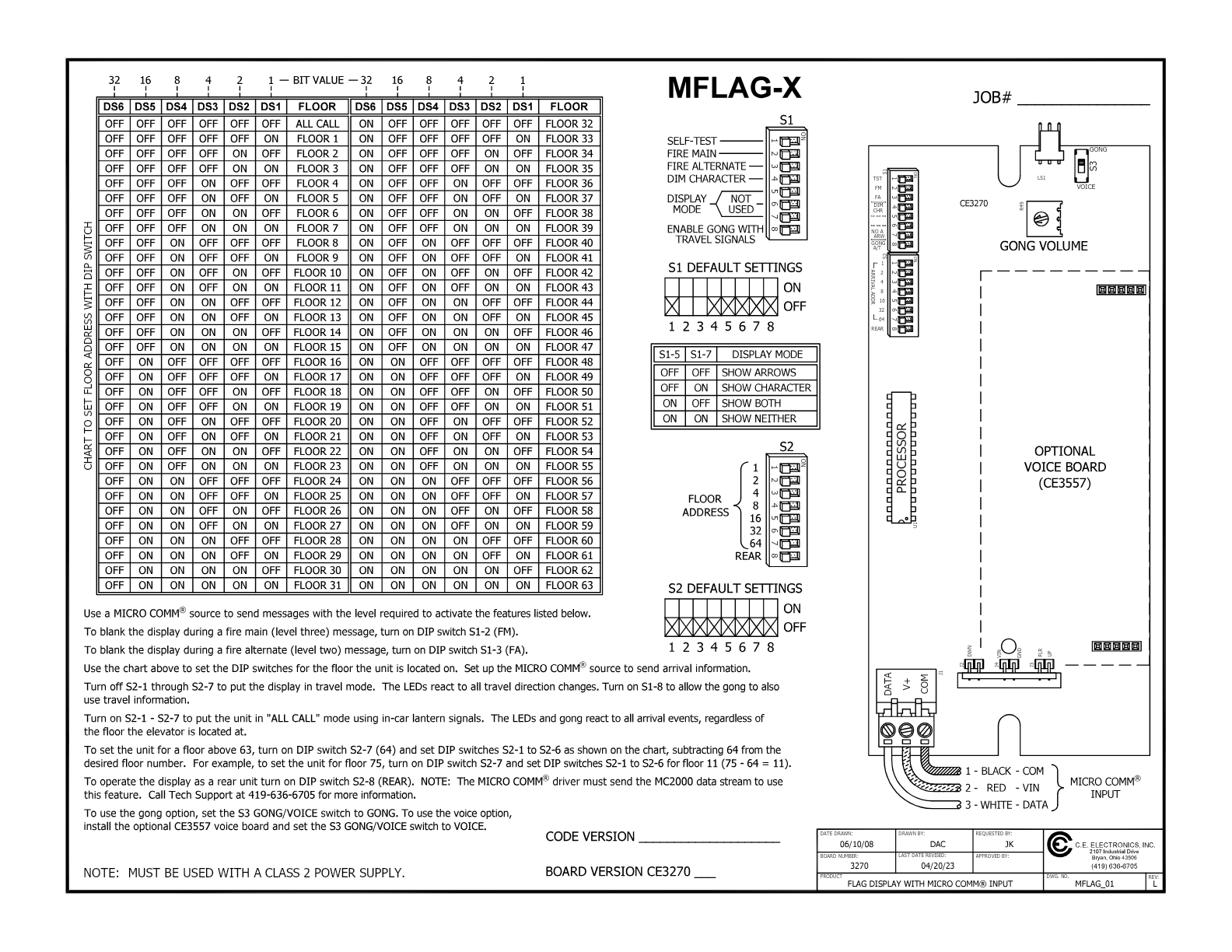

Terminal and connection detail for the MICRO COMM input is in the wiring diagram; cut-out and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
