LED EXTENDED DESTINATION CUBE
Our MLBOX-XXX provides clear LED destination indication for destination-based lift systems, with a raised lens designed to provide a 180° viewing angle. Large 3" characters make the assigned lift easy to identify, with red, blue, green, white or amber LED options available to suit the installation.
Designed to connect directly to the MICRO COMM network, the MLBOX-XXX also supports arrival and destination tones, DIP-switch programming and an optional destination voice card. Long-life solid-state LEDs provide a rated life of 100,000 hours, making it a practical solution for high-use hall and destination display applications.
Destination indication, car and landing.
Built for destination-control dispatching and driven over MICRO COMM, mounted to suit the car and landing fixtures you already have.
Technical specification
Connect it over MICRO COMM.

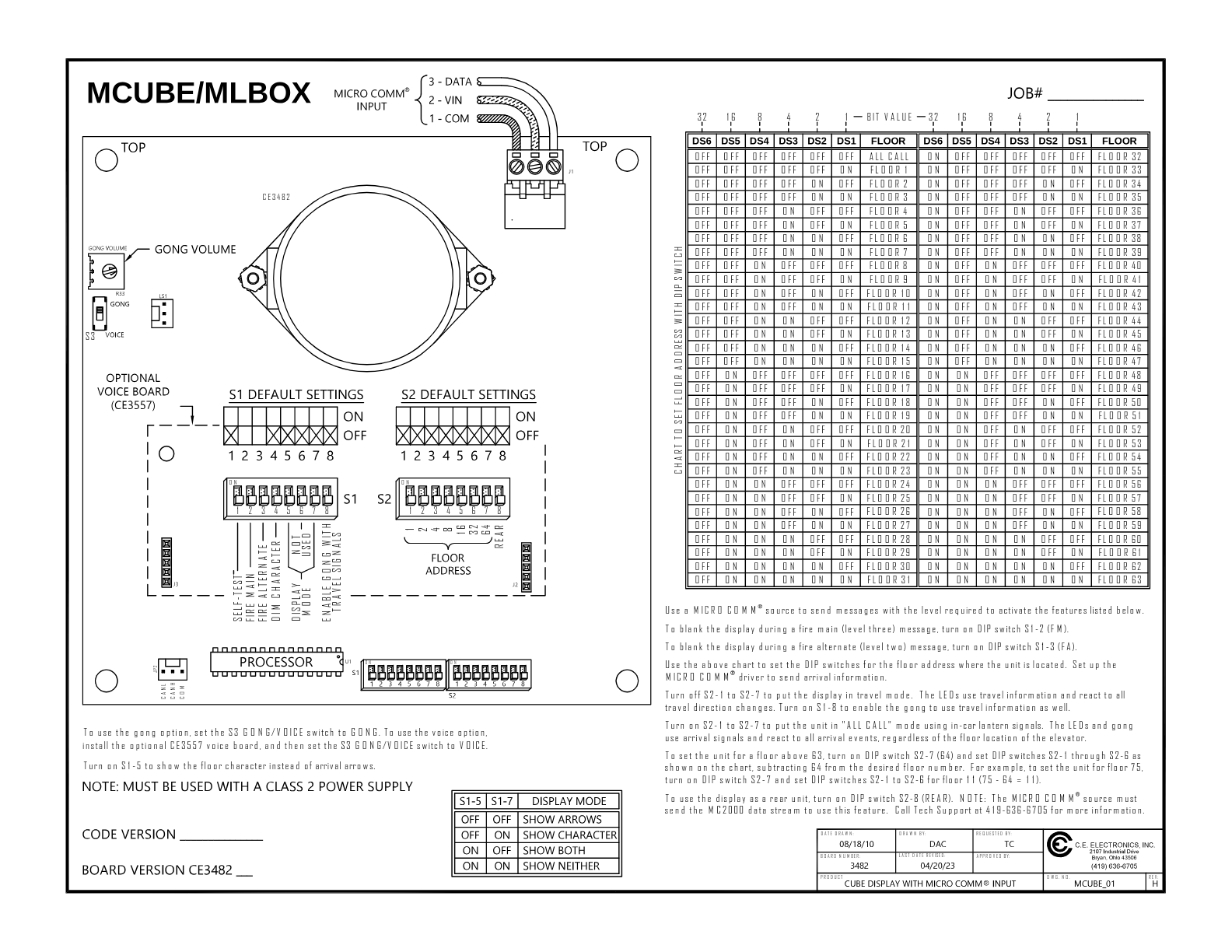

Terminal and connection detail for the MICRO COMM input is in the wiring diagram; cut-out and mounting dimensions are given in the datasheet and dimensional drawing.
Stuck on a connection or signal type? Talk to technical support.
